Engine Coolant Temperature Sensor Replacement

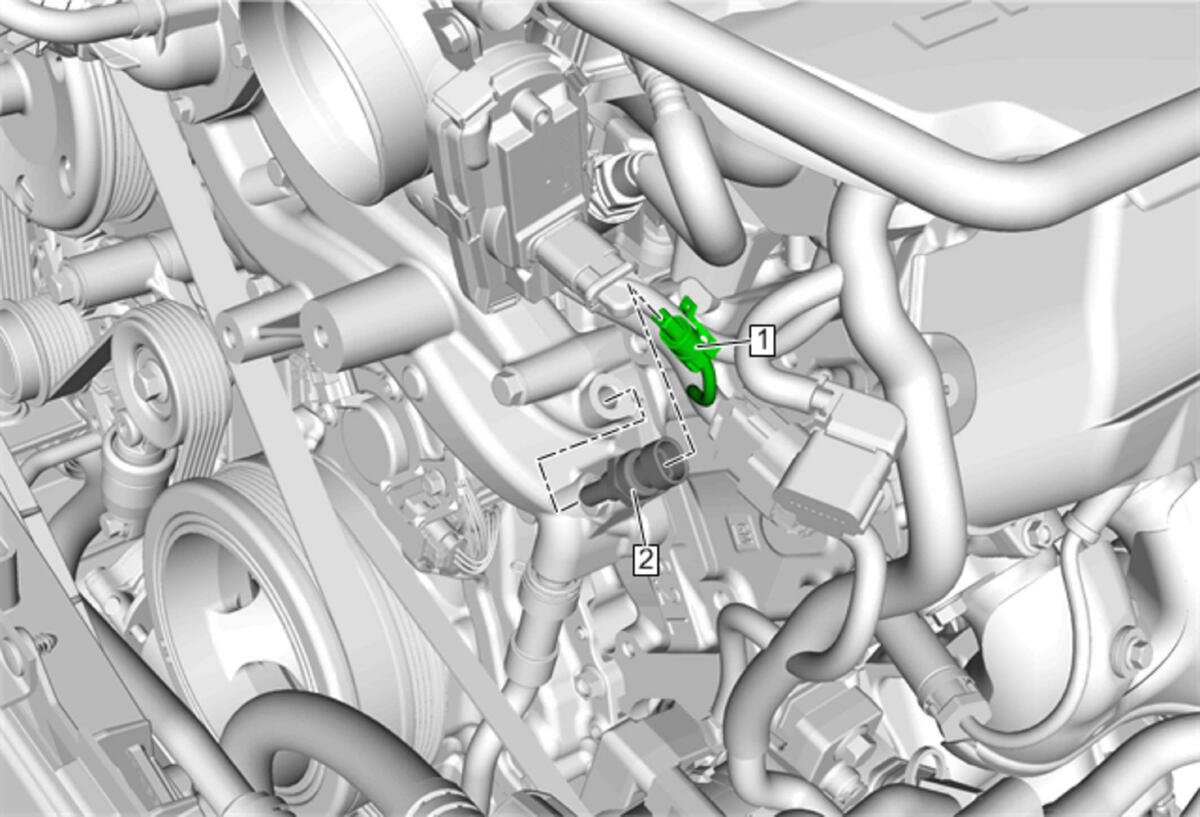

Fig 1: Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Air Cleaner Outlet Duct Replacement
1	Electrical Connector
2	Engine Coolant Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Tighten  20 N.m (15 lb ft)
