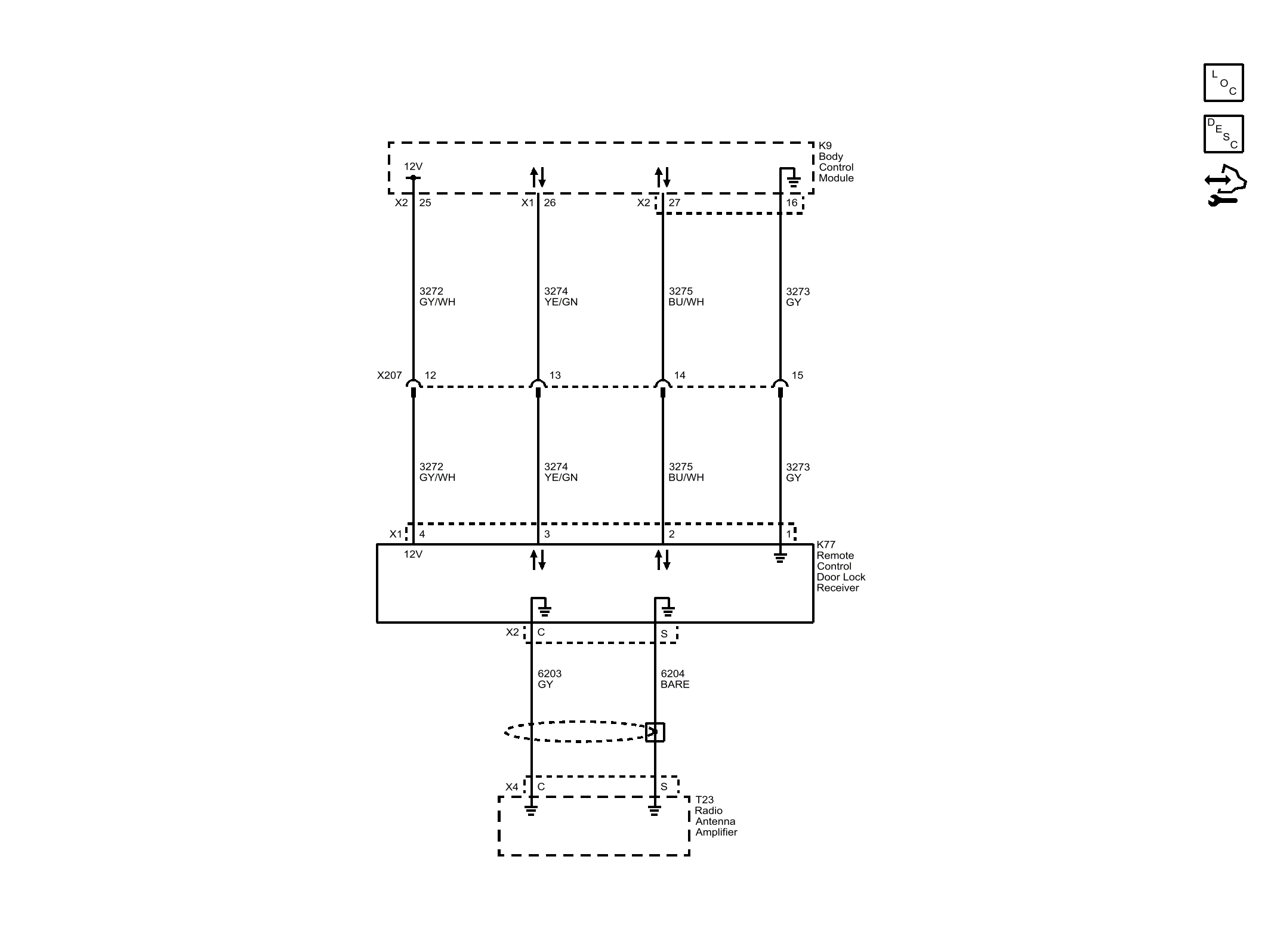

Home › Chevrolet › 2016 › Caprice 6.0L Eng VIN 2 › Repair and Diagnosis › Accessories & Equipment › Anti-Theft Systems › Keyless Entry System And Remote Functions › Schematic and Routing Diagrams › Remote Function Wiring Schematics › Keyless Entry
