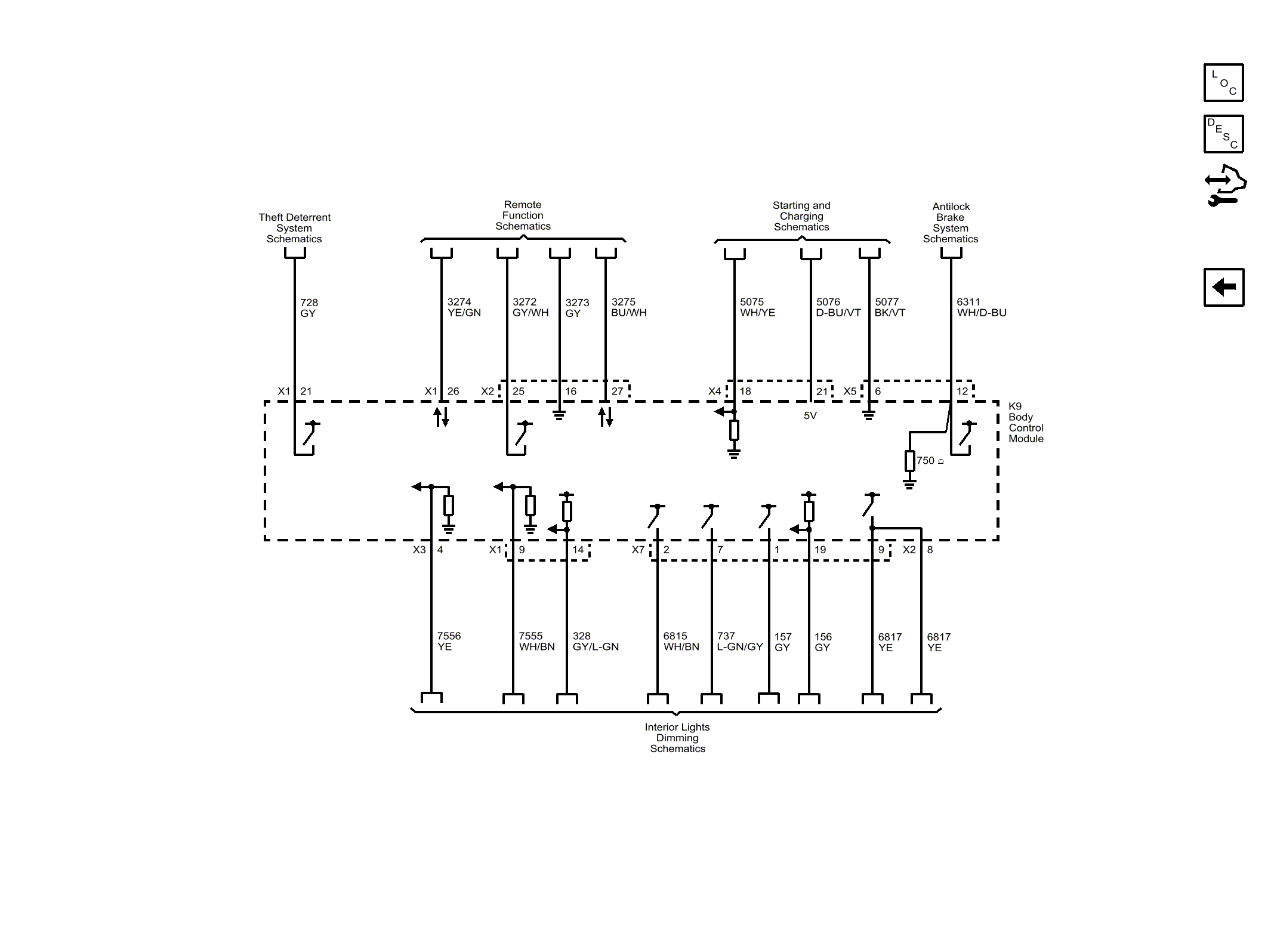

Home › Chevrolet › 2016 › Caprice 6.0L Eng VIN 2 › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Body Control System Wiring Schematics › Subsystem References (3 of 3)
