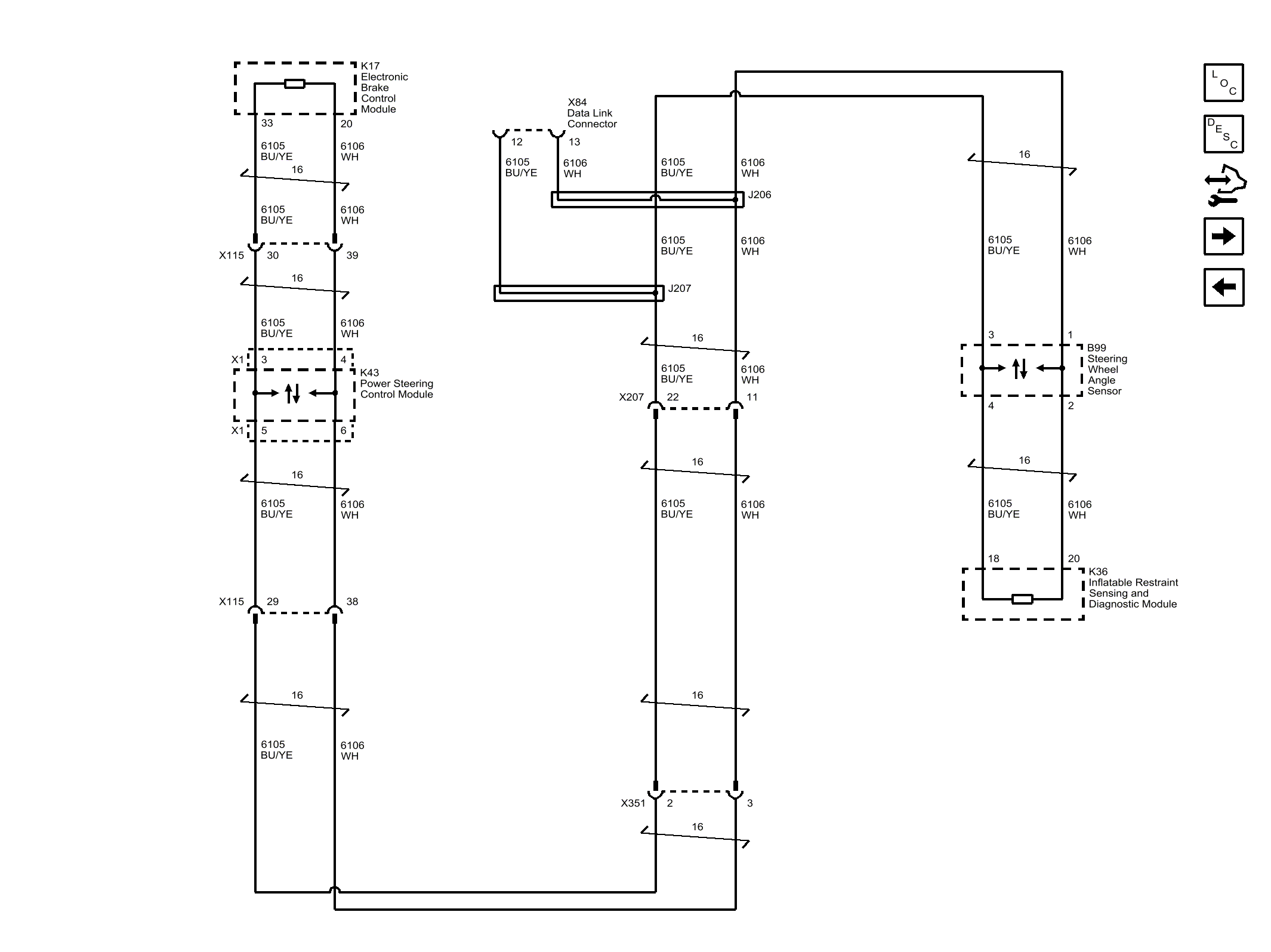

Home › Chevrolet › 2016 › Caprice 6.0L Eng VIN 2 › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Chassis Expansion BUS
