Body Control Module Replacement

Preliminary Procedure

1. If a replacement module is installed, save current module specification. Control Module References
2. Battery Negative Cable Disconnection and Connection - Disconnect
3. Instrument Panel Storage Compartment Replacement - Remove

Procedure

1. Electrical Connector - Disconnect

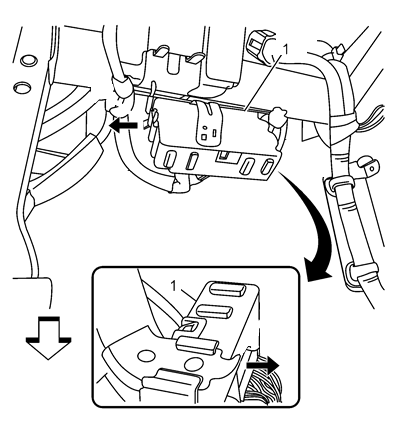

2. Press on the tabs to release the body control module.
3. If a replacement module is installed, program the module. Control Module References
