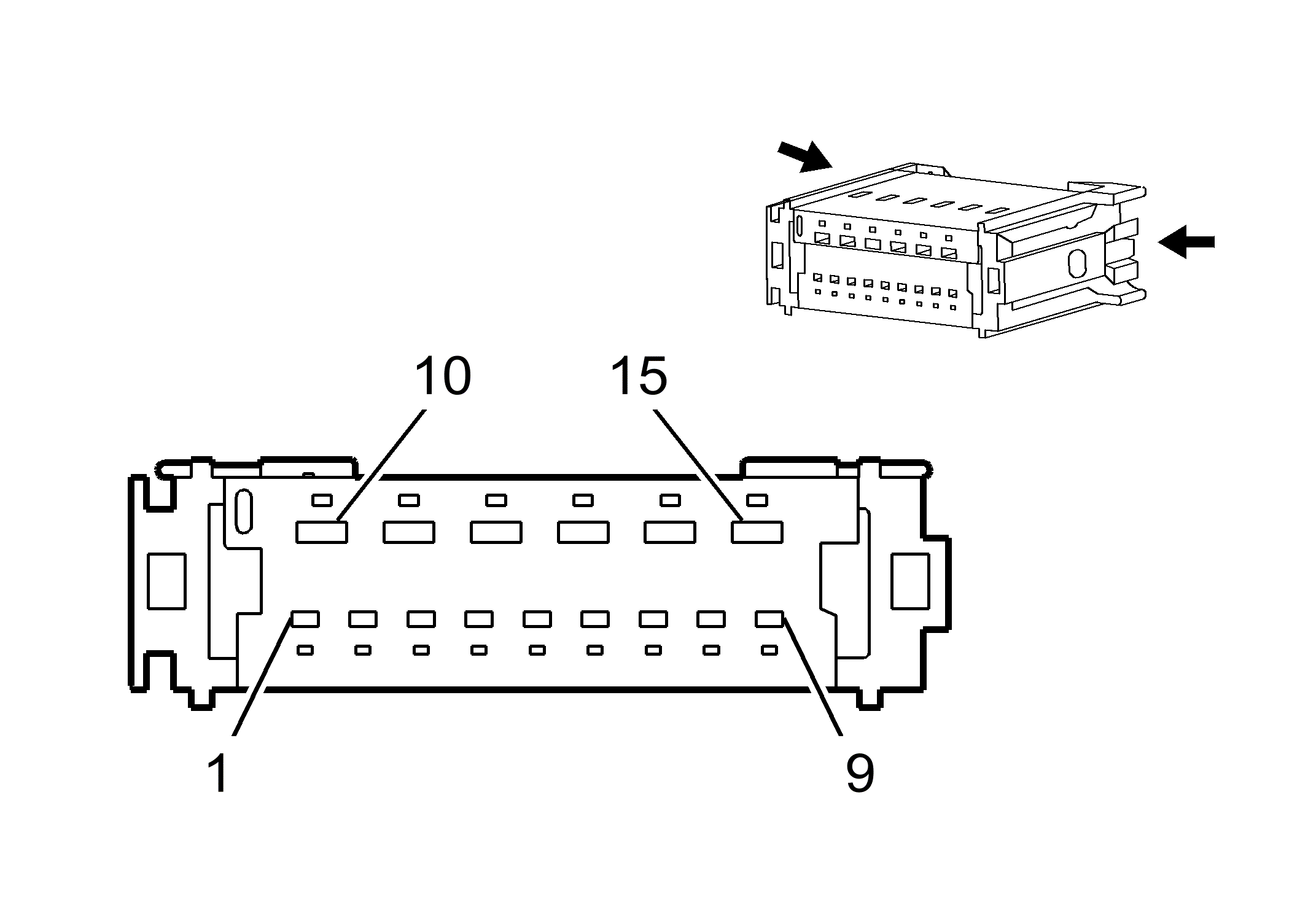

K9 Body Control Module X2
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: FEA09FW-FHA6 - SA
- Service Connector: Service by Harness - See Parts Catalog
- Description: 15-Way F (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Service by Harness - See Parts Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
D-GN |
PD19 |
Driver Door Lock Motor Unlock Control |
I |
- |
| 2 |
- |
YE |
DA35 |
Battery Positive Voltage |
I |
- |
| 3 |
- |
D-BU |
LG01 |
Interior Lamp Wake Up Signal |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
- |
BN |
LG02 |
Interior Lamp Output Signal |
I |
- |
| 6-7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
- |
L-BU |
HA11 |
A/C Request Indicator Signal |
I |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
- |
YE |
DA09 |
Battery Positive Voltage |
I |
- |
| 11 |
- |
PK |
PA01 |
Power Window Supply Voltage |
I |
- |
| 12 |
- |
D-BU |
PA02 |
Power Window Ignition Output |
I |
- |
| 13 |
- |
YE |
PD21 |
Passenger Door Lock Motor Unlock Control |
I |
- |
| 14 |
- |
D-BU |
PD18 |
Door Lock Motor Lock Control |
I |
- |
| 15 |
- |
BK |
PDE1 |
Ground |
I |
- |
