Fan Blade Replacement

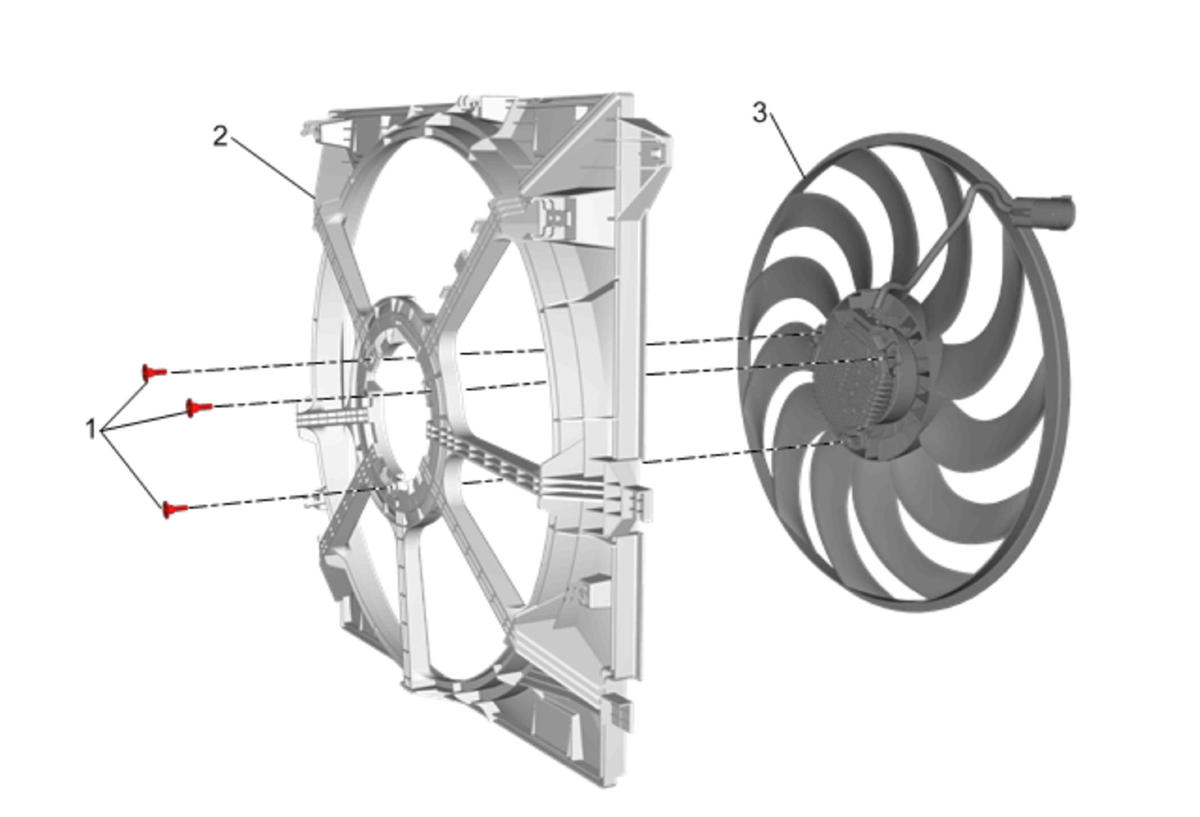

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement (LFX) Engine Coolant Fan Shroud Replacement (LCV) Engine Coolant Fan Shroud Replacement (LWN) . |
|
| 1 | Fan Blade Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 7 N.m (62 lb in) |
| 2 | Engine Coolant Fan Shroud |
| 3 | Fan Blade Procedure Unclip the engine coolant fan motor wiring from the engine coolant fan shroud. |
