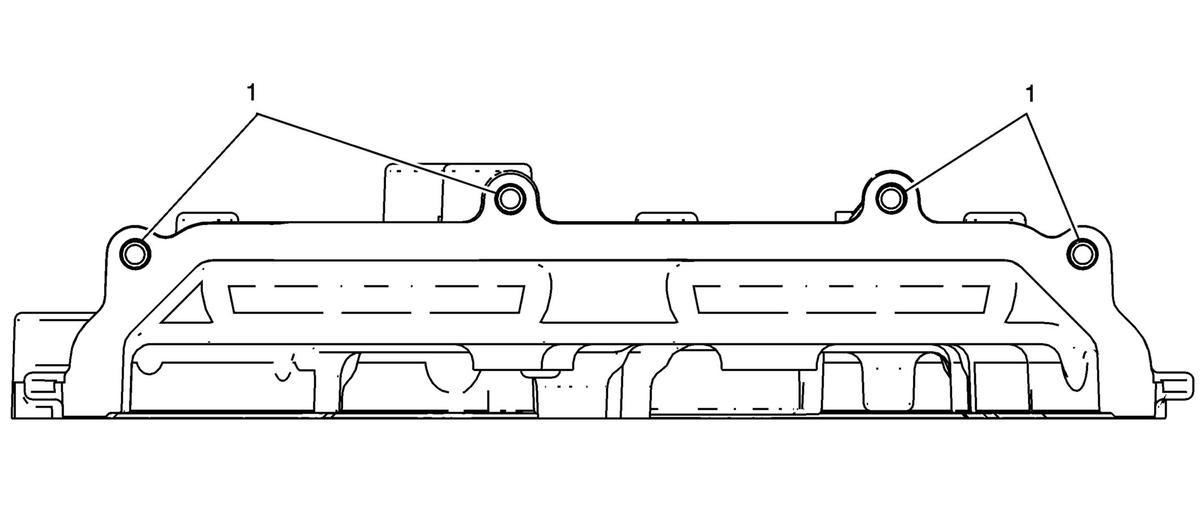

Engine Front Cover - Top View
Courtesy of GENERAL MOTORS COMPANY Engine Front Cover - Top View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| EN 42385 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M5x0.8 |
3005 |
3001 |
3002 |
3003 |
3004 |
23.0 |
0.907 |
23.0 |
0.907 |
