Backup Bulb Replacement
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear body structure stop lamp. Refer to Rear Body Structure Stop Lamp Replacement (Chevrolet) Rear Body Structure Stop Lamp Replacement (GMC) . |
|

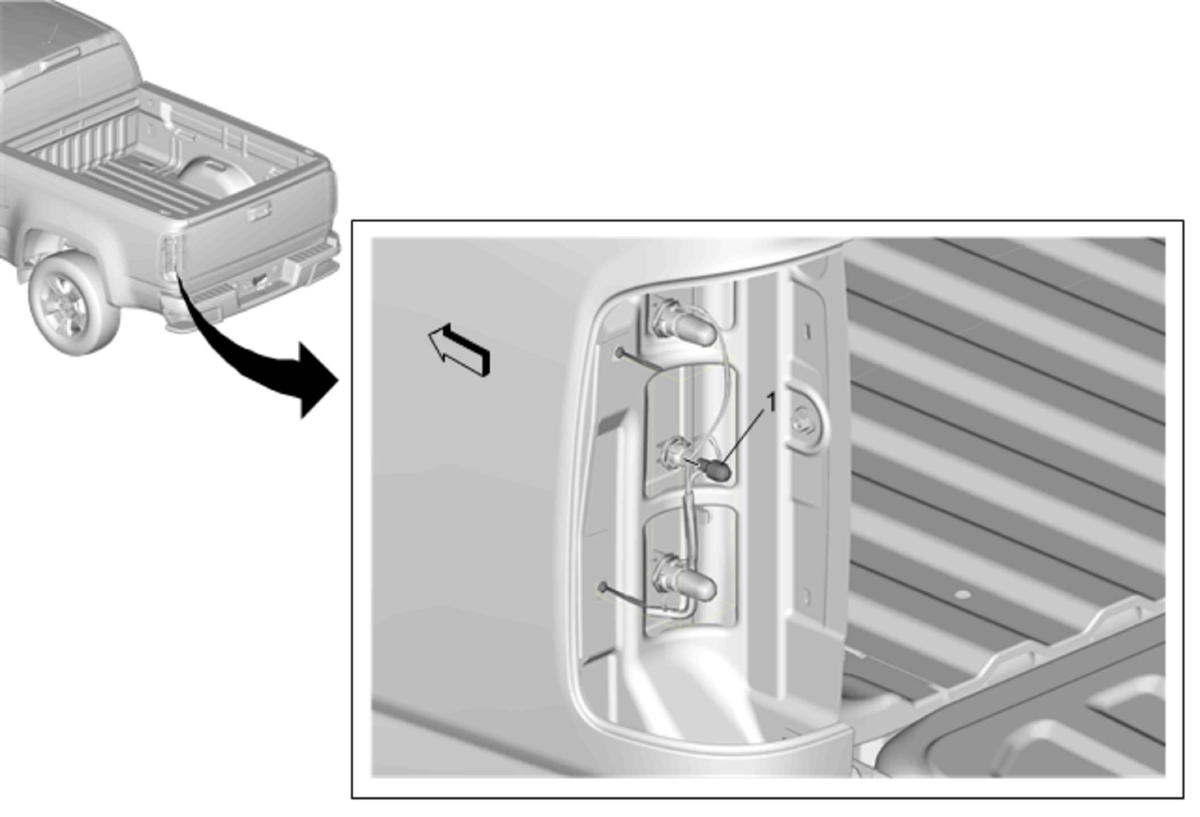

| 1 | Backup Bulb Procedure Pull the backup bulb straight out from the rear lamp monitor light conductor harness. |
