Reading Lamp Bulb Replacement
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the center reading and courtesy lamp lens. Refer to Center Reading and Courtesy Lamp Lens Replacement (Front) Center Reading and Courtesy Lamp Lens Replacement (Rear) Center Reading and Courtesy Lamp Lens Replacement (Extended Cab) . |
|

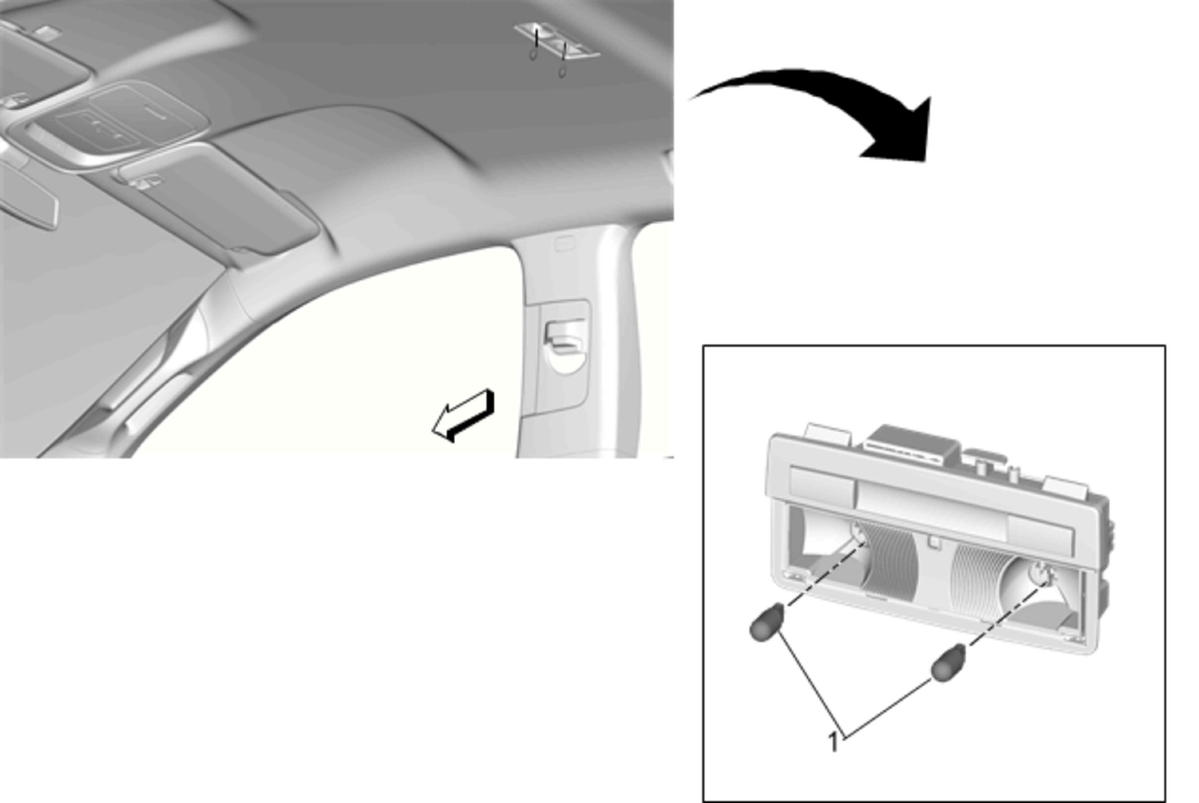

| 1 | Reading Lamp Bulb (Qty: 2) Procedure Pull bulb straight out from element socket. |
