Mobile Telephone Microphone Grille Replacement
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower the front portion of the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (Crew Cab)Headlining Trim Panel Replacement (Extended Cab) . |
|

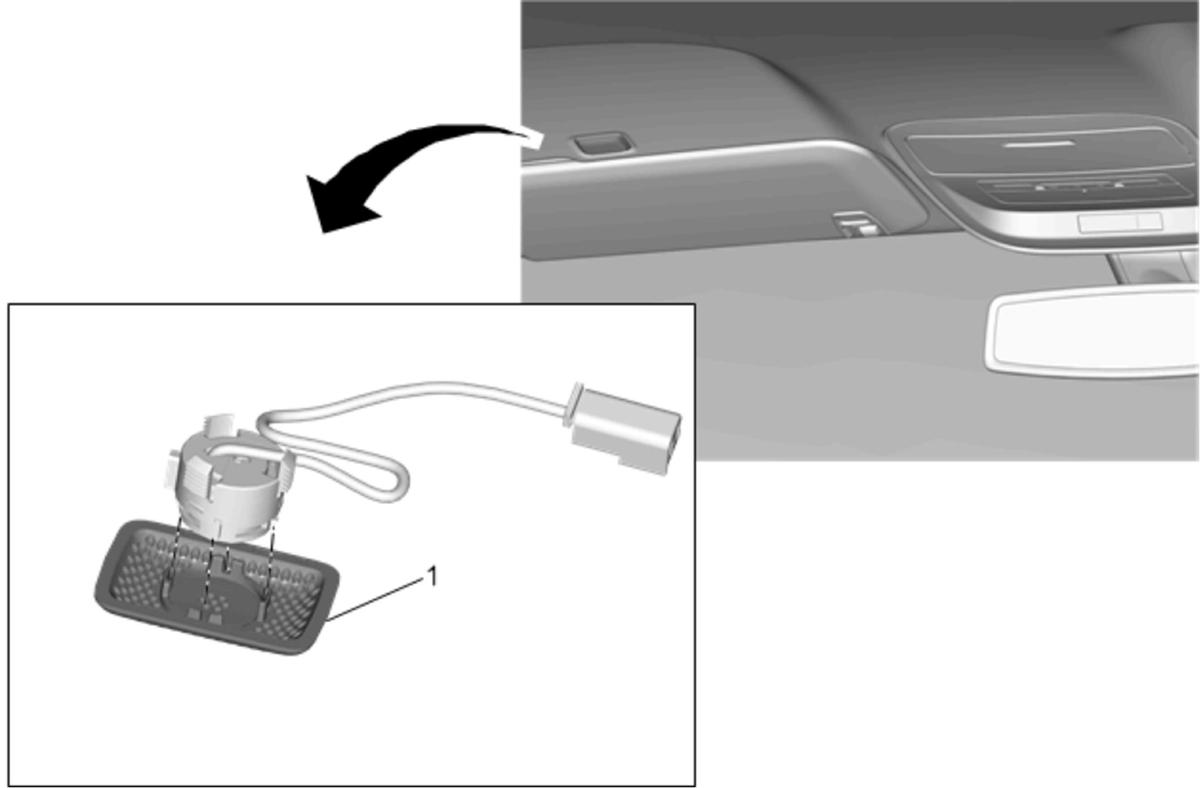

| 1 | Mobile Telephone Microphone Grille Procedure Use a plastic flat bladed tool to remove the grille assembly. |
