Airbag Front Passenger Presence Module Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

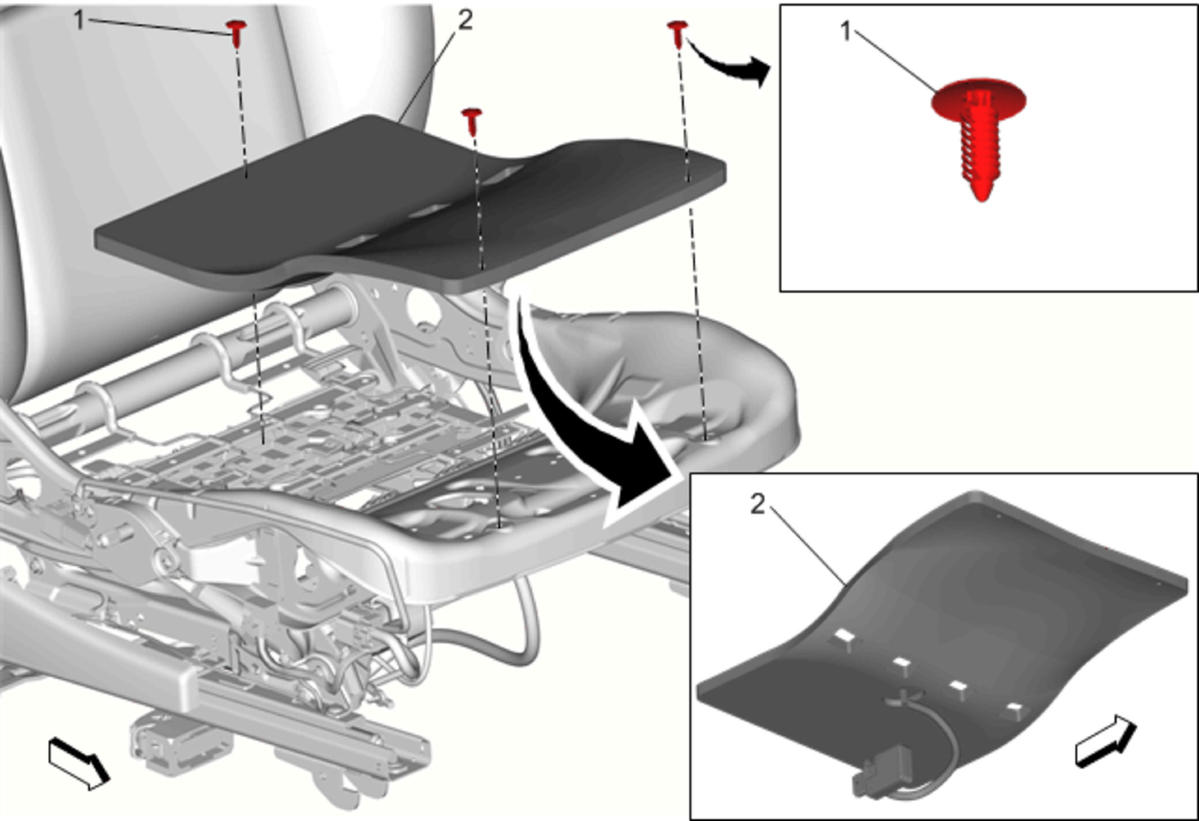

Fig 1: Airbag Front Passenger Presence Module
GM3714166Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

WARNING:

Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. All the components in the service kit are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly.

Preliminary Procedure

  1. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
  2. Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1 Airbag Front Passenger Presence Module Retainer (Qty: 3)
2 Airbag Front Passenger Presence Module

Procedure

  1. Unhook the module from the bracket on the underside of seat frame and push up through seat pan.
  2. Disconnect the electrical connector and remove the sensor and module from the seat pan.
  3. Passenger Presence System Rezeroing
