Chevrolet
›
2016
›
Corvette Z06, 2D Convertible, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Body Control System Wiring Schematics
›
Power, Ground and Data Communications
Power, Ground and Data Communications

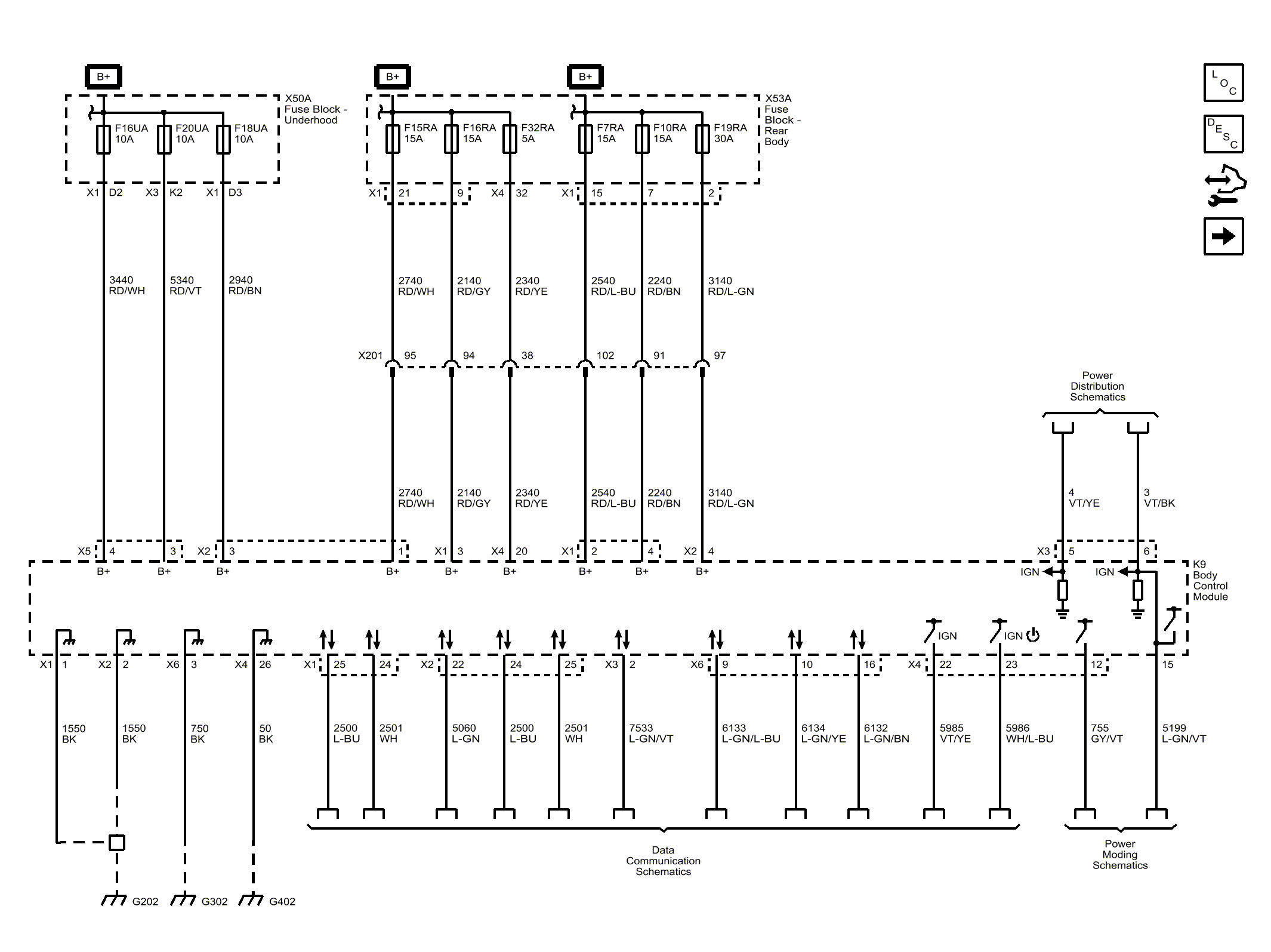

Fig 1: Power, Ground and Data Communications
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
