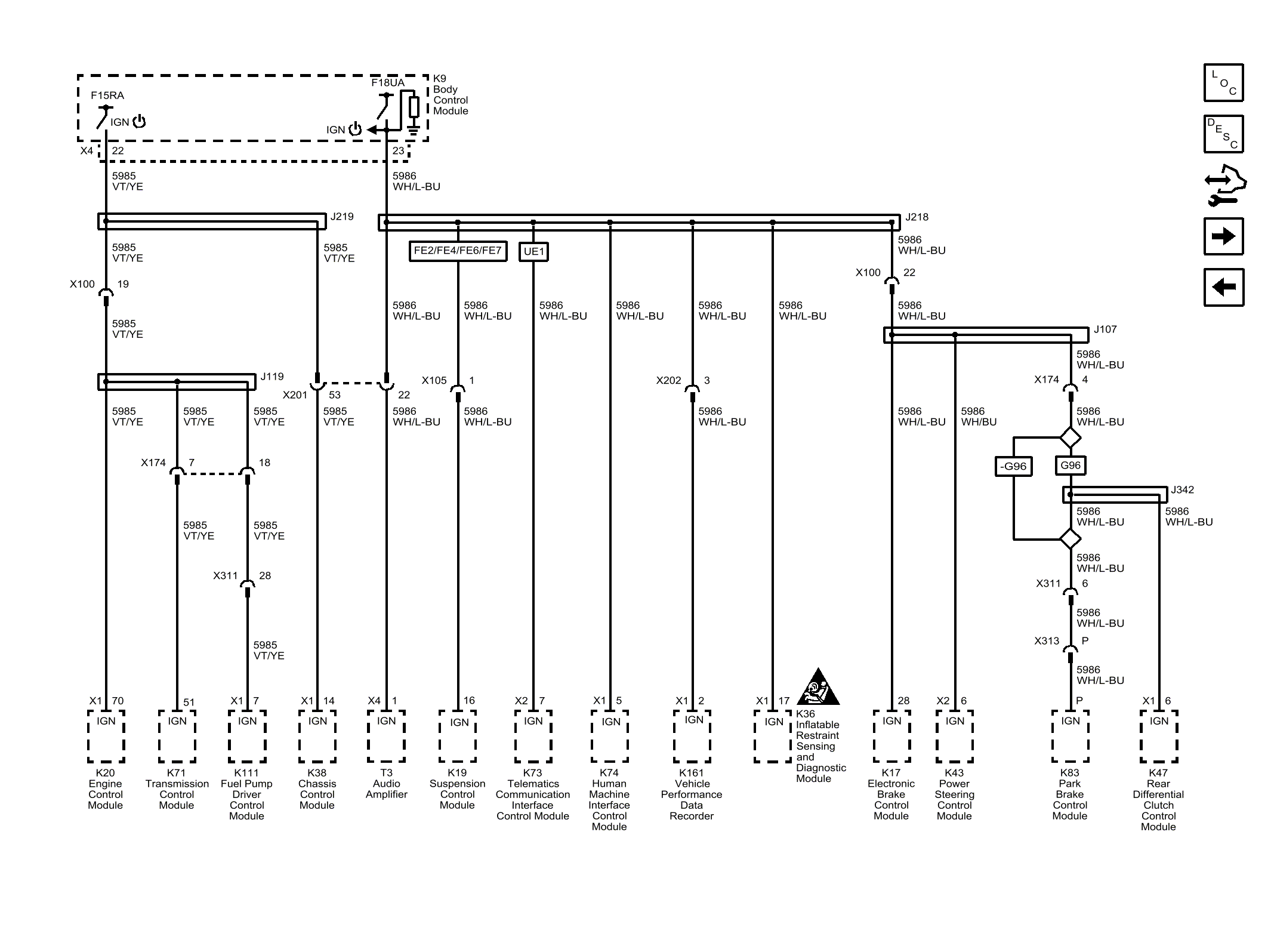

Home › Chevrolet › 2016 › Corvette Z06, 2D Convertible, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › GMLAN Communication Enable
