Radio and Telephone Control Switch Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

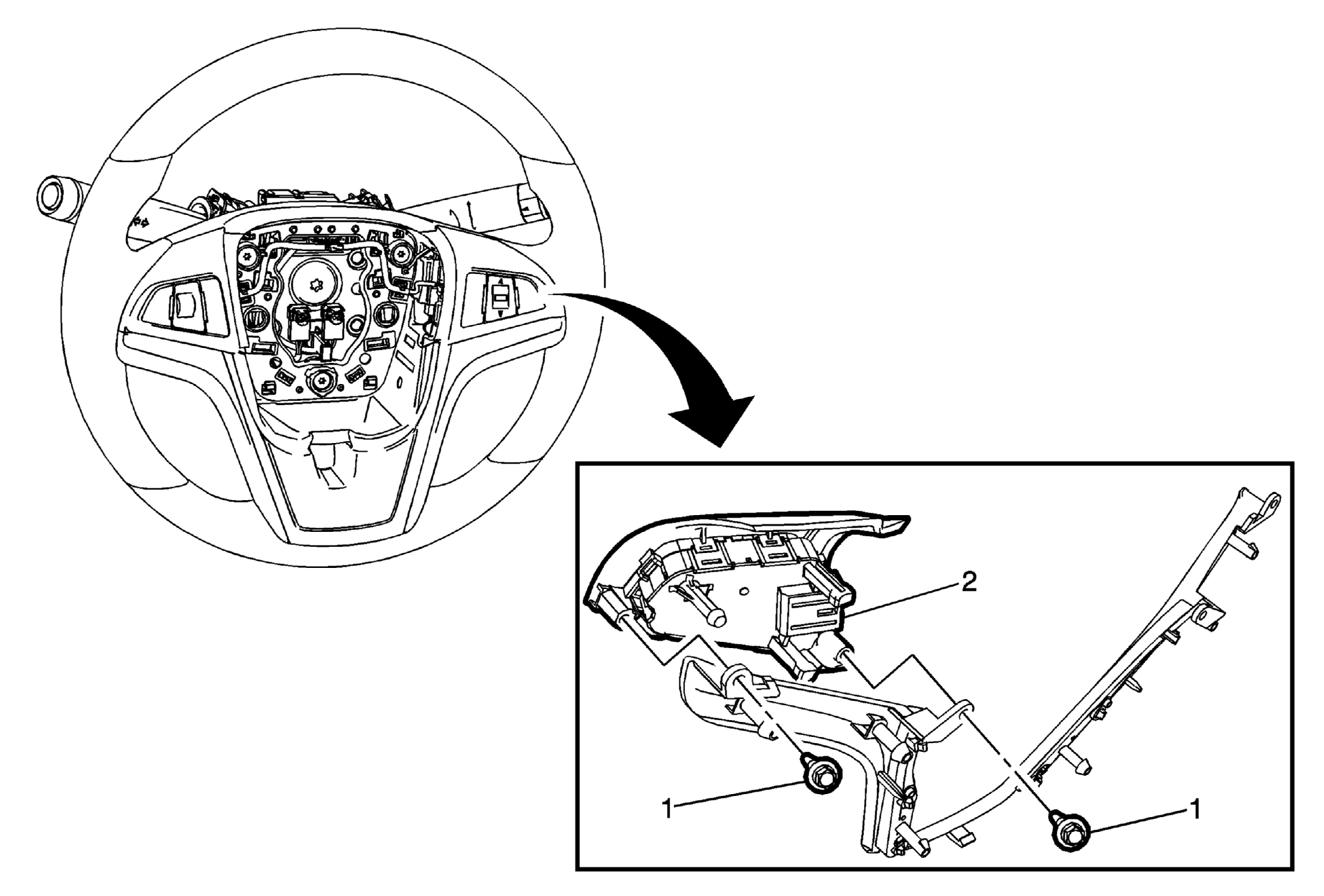

Fig 1: Radio and Telephone Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement . Remove the steering wheel spoke cover. Refer to Steering Wheel Spoke Lower Cover Replacement .
1	Steering Wheel Lower Cover Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Radio and Telephone Control Switch Assembly

Callout

Component Name

Preliminary Procedures

Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .
Remove the steering wheel spoke cover. Refer to Steering Wheel Spoke Lower Cover Replacement .

Steering Wheel Lower Cover Fastener (Qty: 2)

CAUTION: Refer to Fastener Caution .

Radio and Telephone Control Switch Assembly
