Object Detection Wiring Schematics
›
Power, Ground, Serial Data and Controls
Power, Ground, Serial Data and Controls

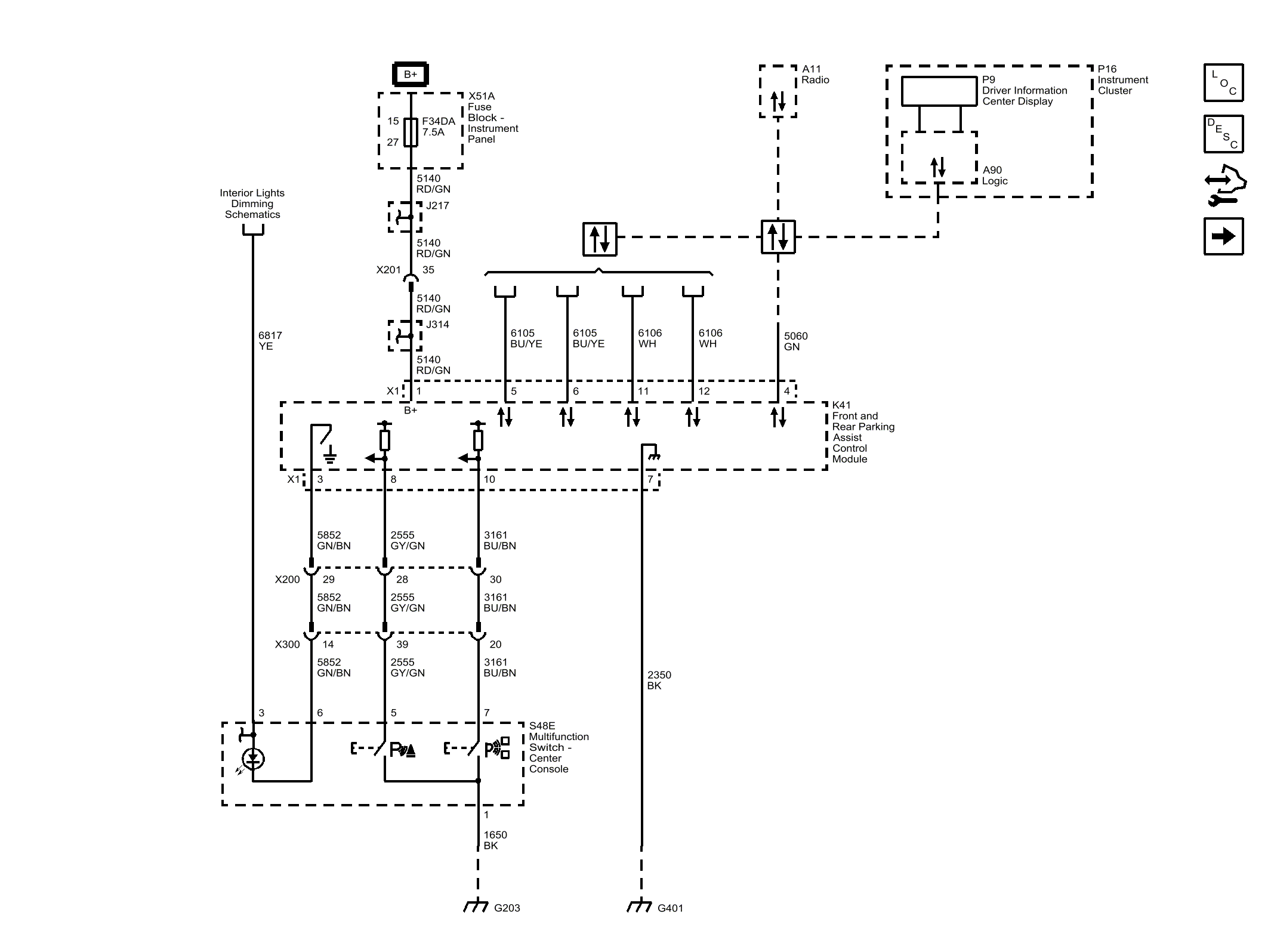

Fig 1: Power, Ground, Serial Data and Controls
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
