Remote Control Door Lock Receiver Replacement

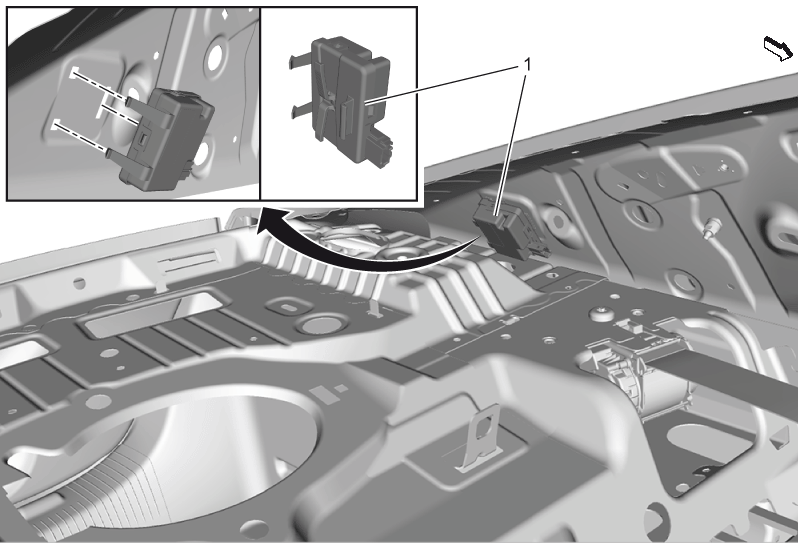

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Window Panel Trim Replacement
1	Remote Control Door Lock Receiver Procedure Retainer» Loosen [2x] Disconnect the electrical connector.

Callout

Component Name

Remote Control Door Lock Receiver

Procedure
