Outside Rearview Mirror Replacement

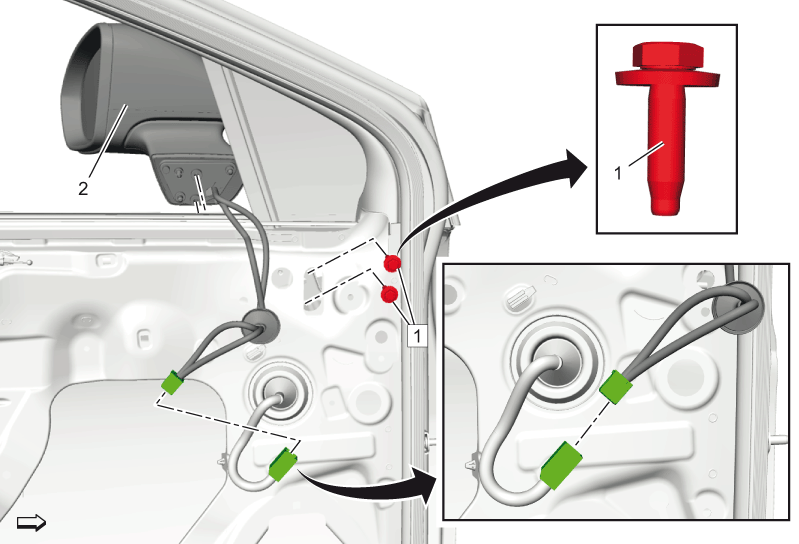

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Side Door Water Deflector Replacement
1	Outside Rearview Mirror Bolt [2x] CAUTION: Fastener Caution Tighten  9 N.m (80 lb in)
2	Outside Rearview Mirror Procedure  Disconnect the electrical connector.
