Multifunction Power Supply Converter Replacement

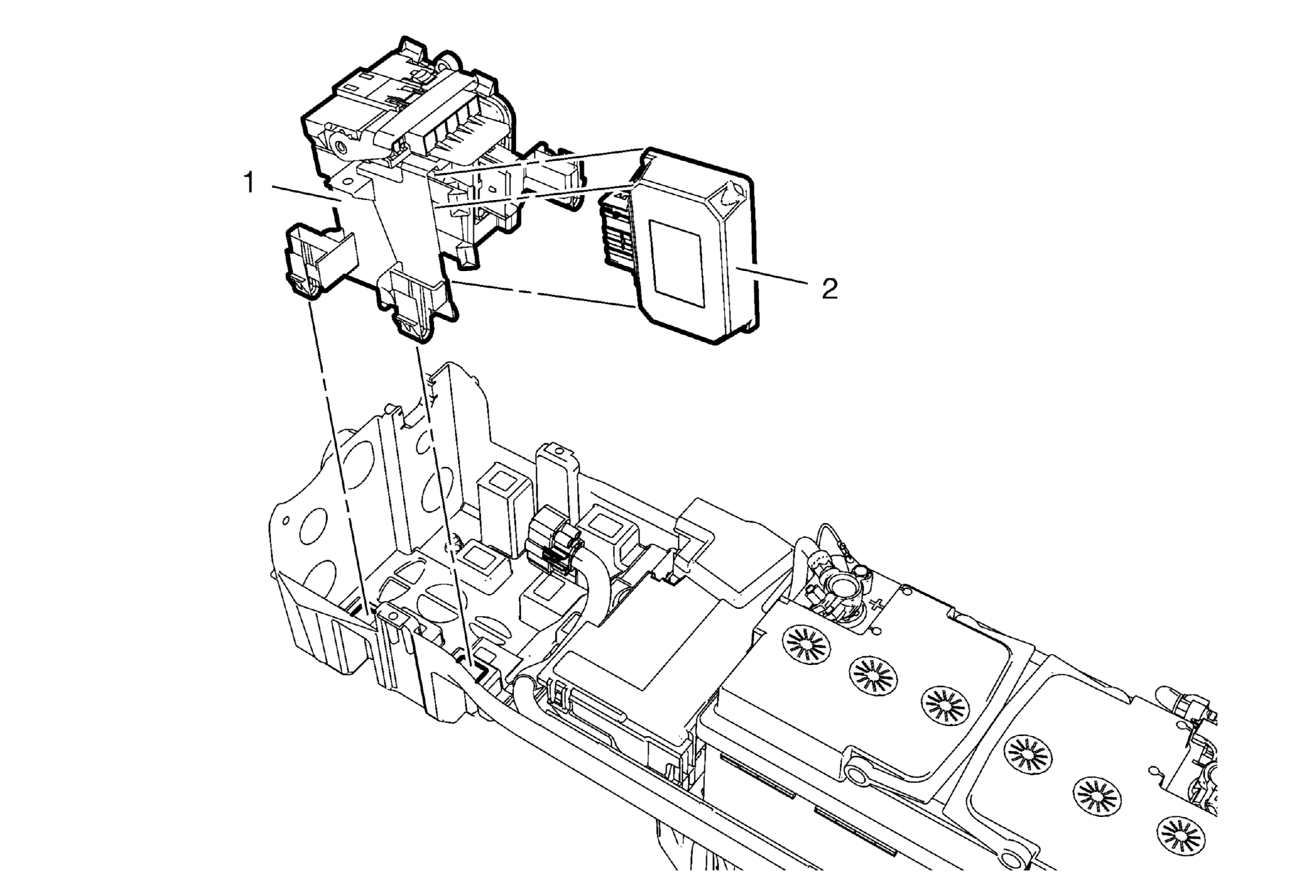

| Callout | Component Name |
|---|---|
| Preliminary Procedures Battery Negative Cable Disconnection and Connection |
|
| 1 | Fuel Pump Power Control Module Bracket Procedure Disconnect the electrical connectors and clip out the battery tray. |
| 2 | Multifunction Power Supply Converter Procedure Disconnect the electrical connector and clip out from the fuel pump power control module bracket. |
