Installation Procedure

  1. Radiator Lower Bracket - Right Side (1)» Install
    Fig 1: Radiator Lower Bracket
    GM4117433Courtesy of GENERAL MOTORS COMPANY
    NOTE: Right side shown, left side is similar.
  2. While holding the radiator assembly turn the radiator lower bracket back to its original position on the drivetrain and front suspension cradle.
  3. While holding the radiator assembly install the 2 radiator lower bracket bolts (1).

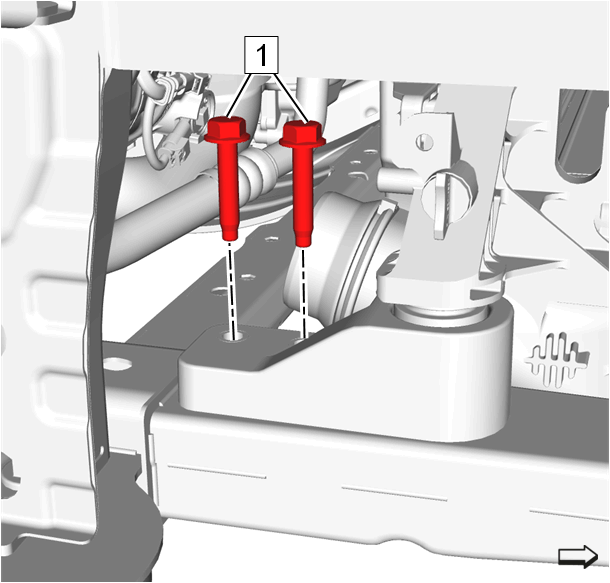

    Fig 2: Radiator Lower Bracket Bolts
    GM4632682Courtesy of GENERAL MOTORS COMPANY
    NOTE: Right side shown, left side is similar.
  4. Radiator Lower Bracket Bolt (1) Tighten [2x] 22 N.m (16 lb ft)
    CAUTION: Fastener Caution
  5. Front Bumper Fascia (1)» Install - Front Bumper Fascia Replacement
    Fig 3: Front Bumper Fascia
    GM4284293Courtesy of GENERAL MOTORS COMPANY
