Communications Enable - High Speed GMLAN

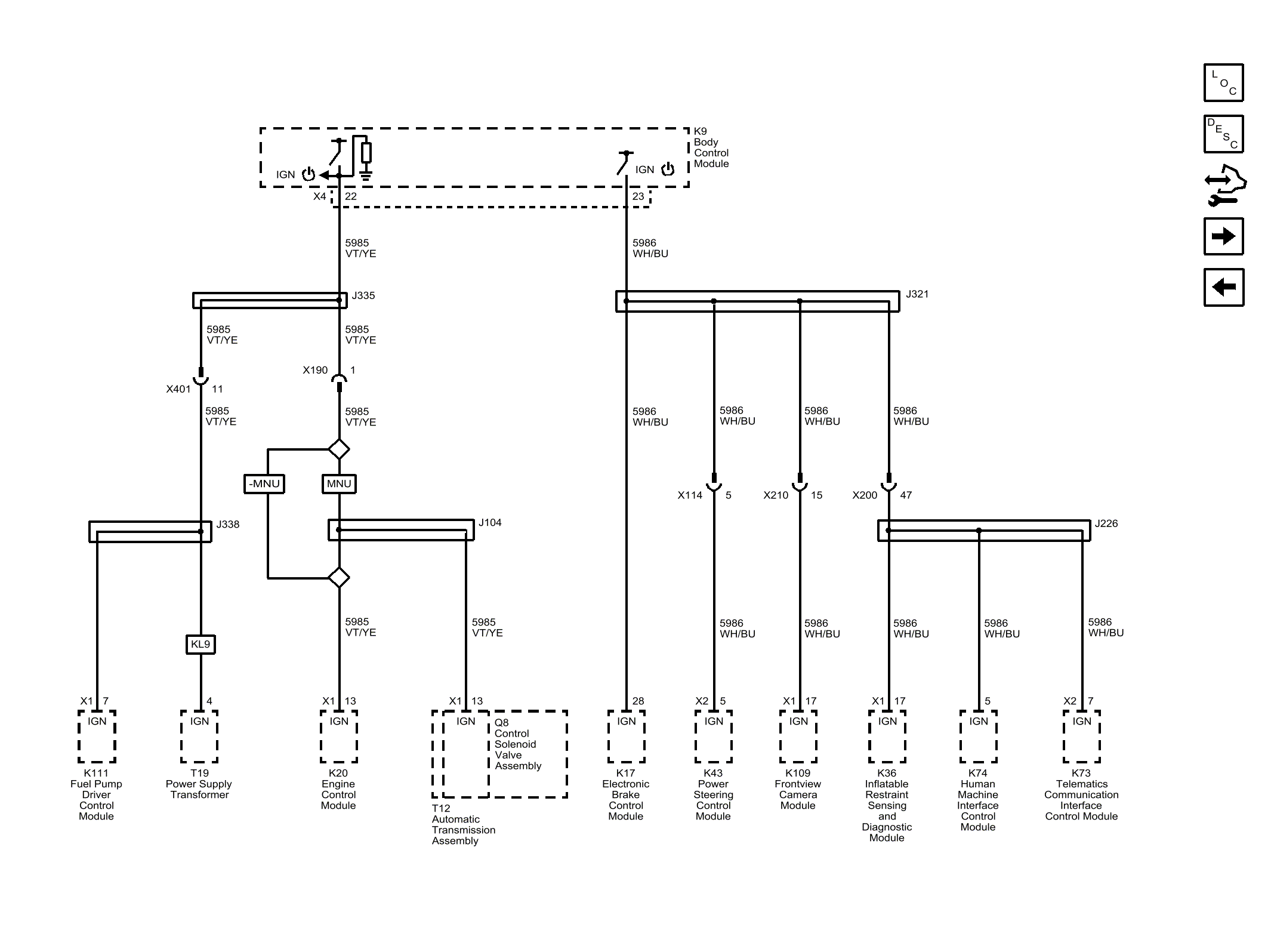

Fig 1: Communications Enable - High Speed GMLAN
GM4251624Courtesy of GENERAL MOTORS COMPANY
