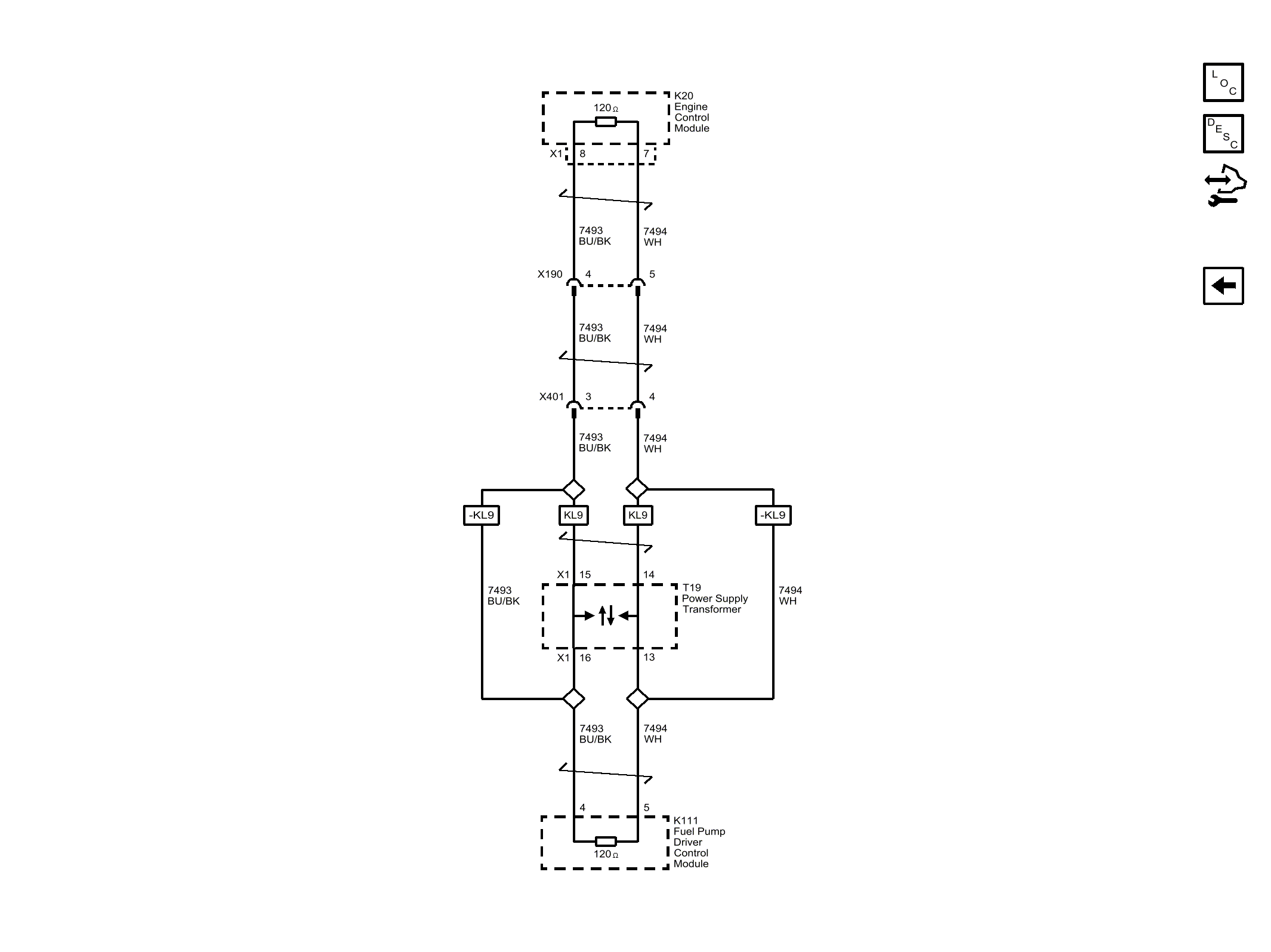

Home › Chevrolet › 2016 › Cruze LS, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Powertrain Expansion Bus
