Installation Procedure

{If equipped} Steering Column Lock Control Module (2)» Install

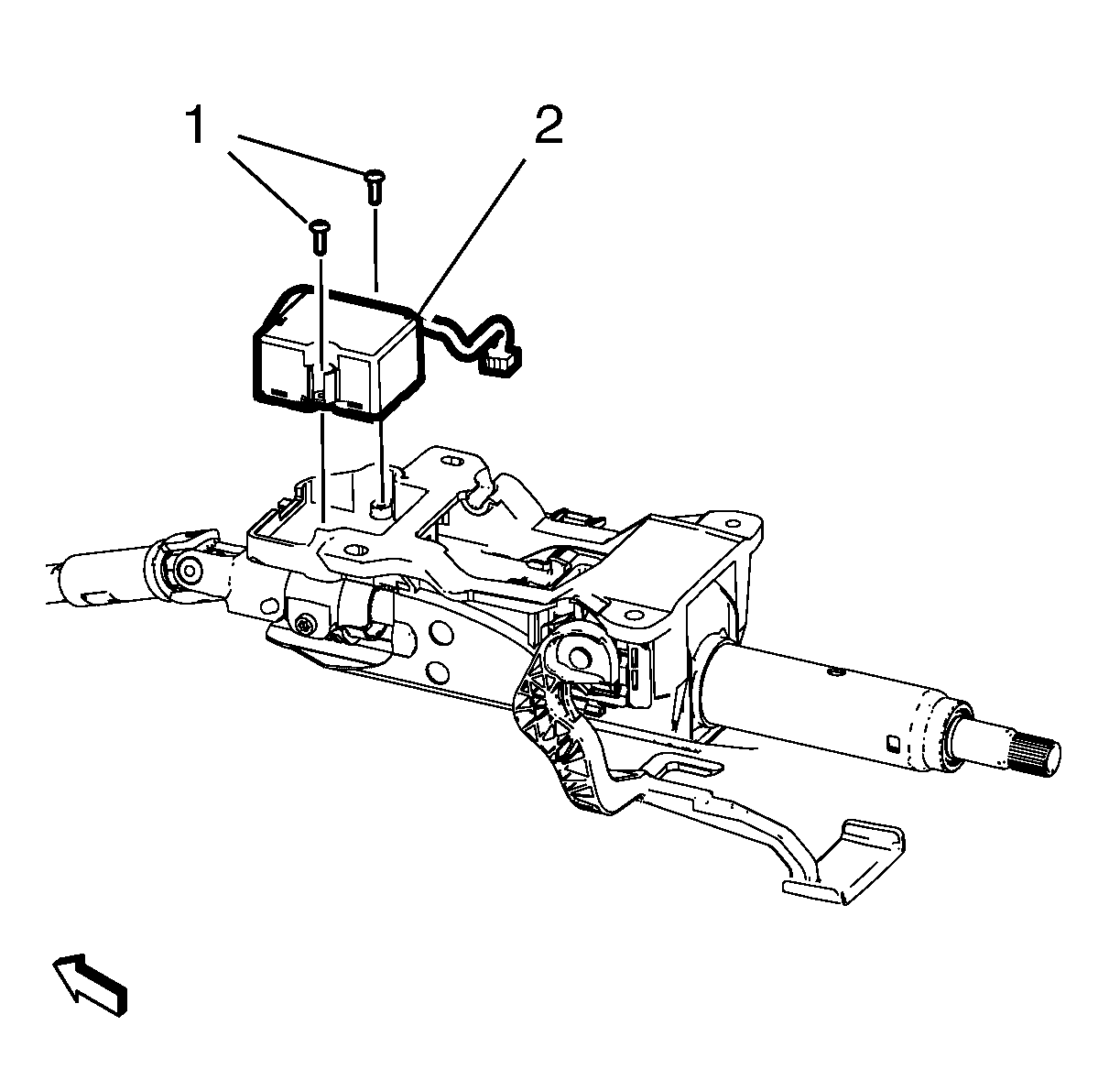

Fig 1: Steering Column Lock Control Module And Bolts
Courtesy of GENERAL MOTORS COMPANY
{If equipped} Bolt (1) @ Steering Column Lock Control Module» Install and tighten 3.5 N.m (31 lb in) [2x]
CAUTION: Refer to Fastener Caution .
Steering Column (1)» Install

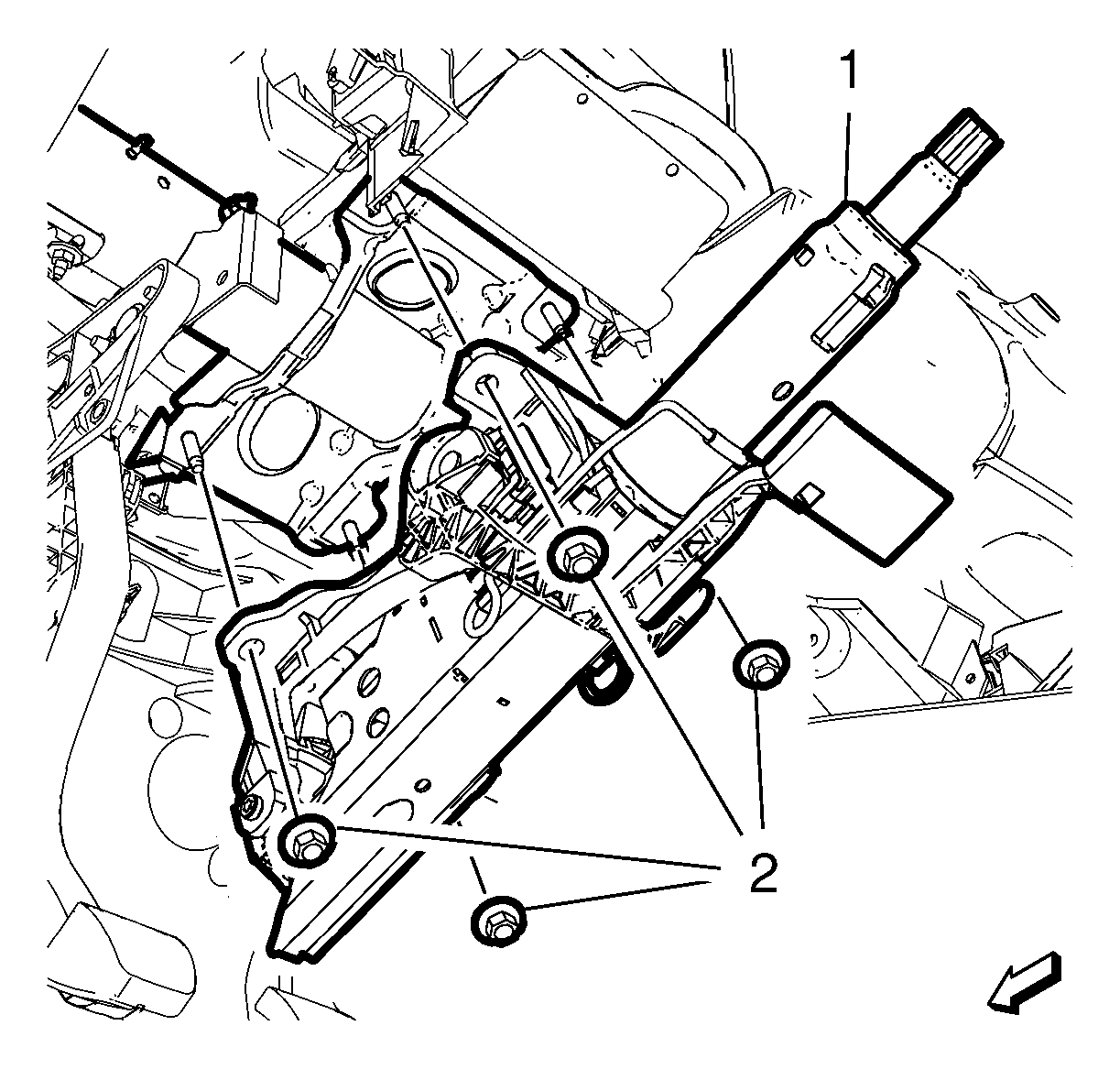

Fig 2: Steering Column Nuts
Courtesy of GENERAL MOTORS COMPANY
Hand-tight the NEW 4 steering column nuts (2).
Steering Column Nut» Tighten in the sequence shown 22 N.m (16 lb ft) [4x]

Fig 3: Steering Column Nut Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY
WARNING:
In order to ensure the intended function of the steering column in a vehicle during a crash and in order to avoid personal injury to the driver, perform the following:
- Tighten the steering column lower fasteners before you tighten the steering column upper fasteners. Failure to do this can damage the steering column.
- Tighten the steering column fasteners to the specified torque. Overtightening the upper steering column fasteners could affect the steering column collapse.
CAUTION: Refer to Fastener Caution .
Connect the steering column electrical connectors.
Connect the intermediate steering shaft to the steering column.

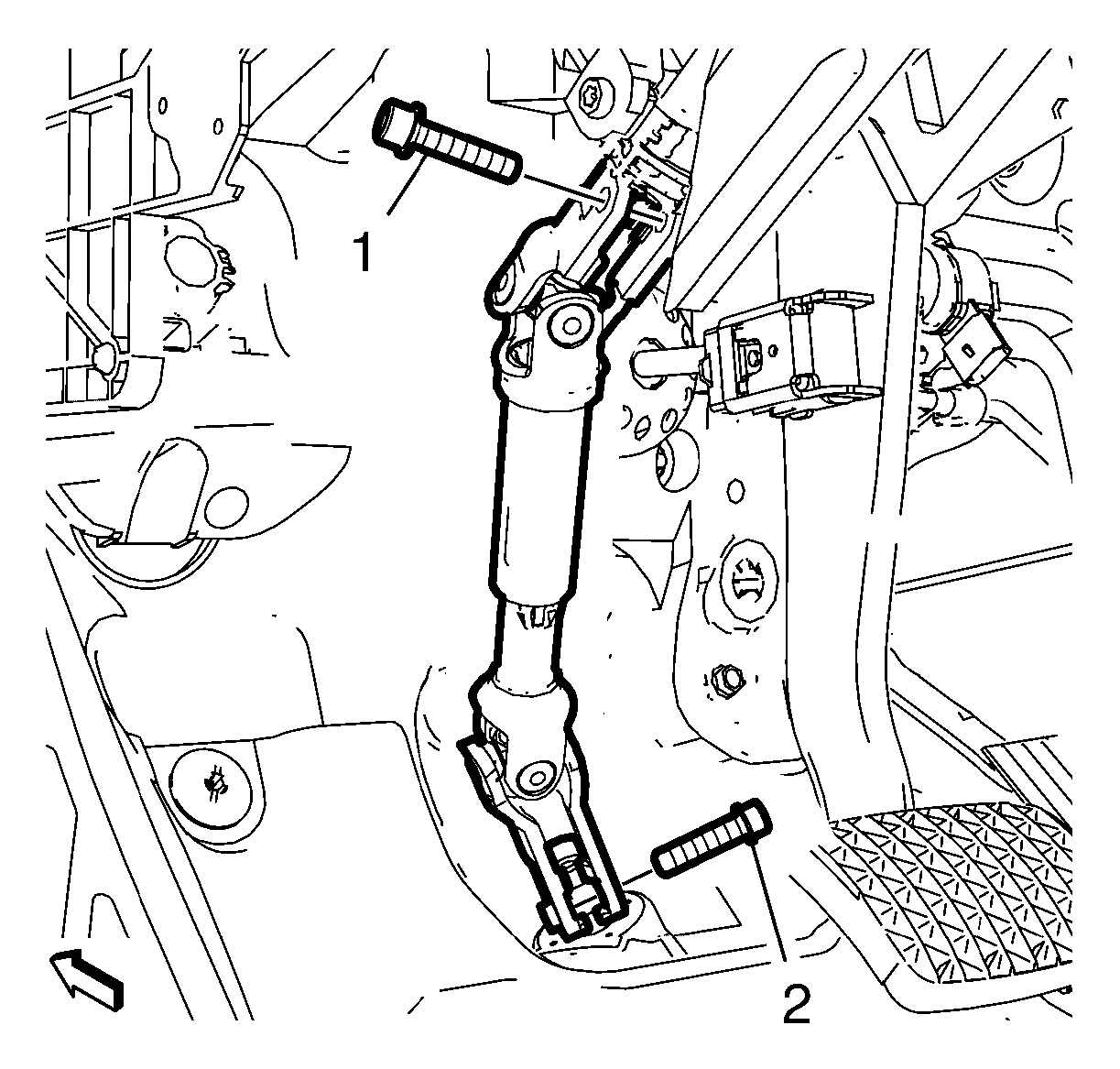

Fig 4: Intermediate Steering Shaft Upper Bolt
Courtesy of GENERAL MOTORS COMPANY
Intermediate Steering Shaft Upper Bolt (1)» Install and tighten
1. First pass: 25 N.m (18 lb ft)
2. Final pass: 180 - 195 degrees
Floor Front Air Outlet Duct Replacement - Left Side » Install
Instrument Panel Lower Airbag Replacement - Driver Side » Install
Turn Signal Switch Bracket Replacement » Install
Steering Column Upper Trim Cover Replacement » Install
Instrument Panel Knee Bolster Replacement » Install
Power Steering Control Module Calibration
