Fuel Tank Heat Shield Replacement

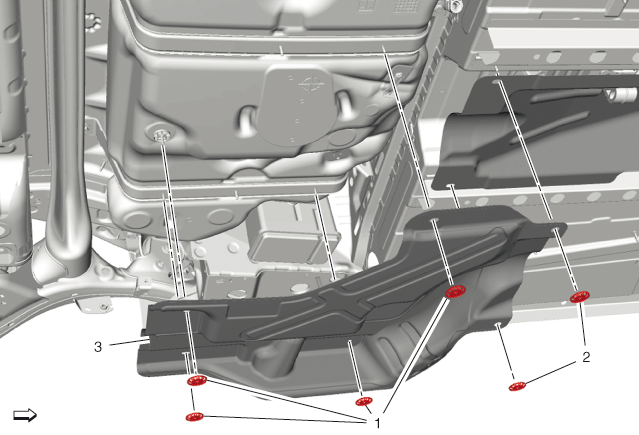

Fig 1: Fuel Tank Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Exhaust System Replacement
1	Fuel Tank Heat Shield Retainer [4x]
2	Exhaust Heat Shield Retainer [2x]
3	Fuel Tank Heat Shield Procedure  Take care and slightly bent down the rear of the exhaust muffler heat shield in order to remove the fuel tank heat shield.
