Accelerator Pedal Replacement

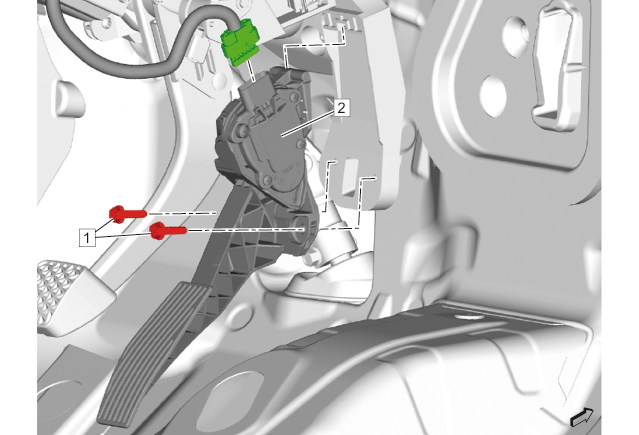

Fig 1: Accelerator Pedal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Accelerator Pedal Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
2	Accelerator Pedal Assembly Procedure  Disconnect the electrical connector.
