Linear Interconnect Network (LIN) Serial Data

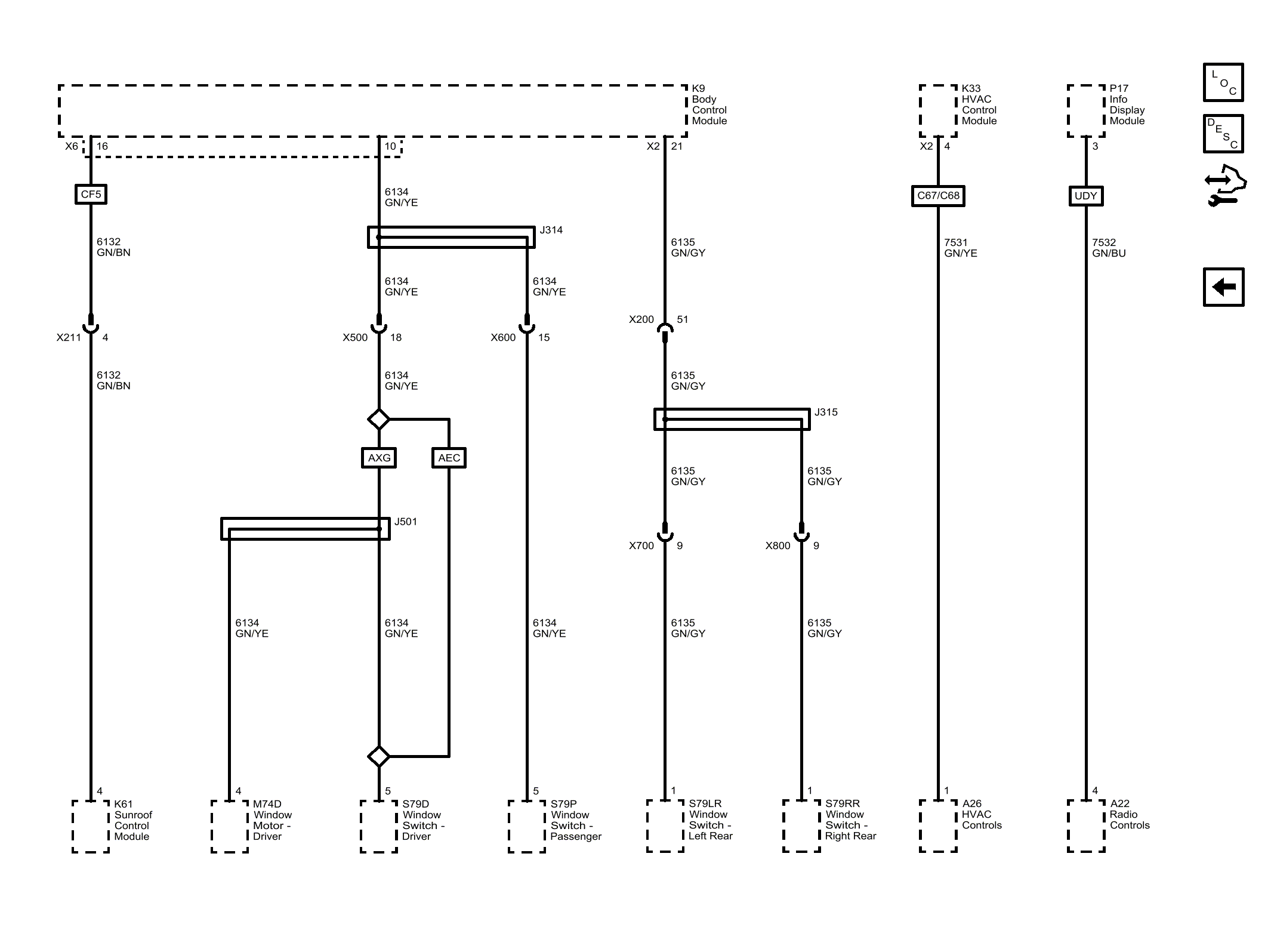

Fig 1: Linear Interconnect Network (LIN) Serial Data
GM4063693Courtesy of GENERAL MOTORS COMPANY
