Rear Vision Camera (UVC With UI8)(Object Detection System And Pedestrian Protection System)

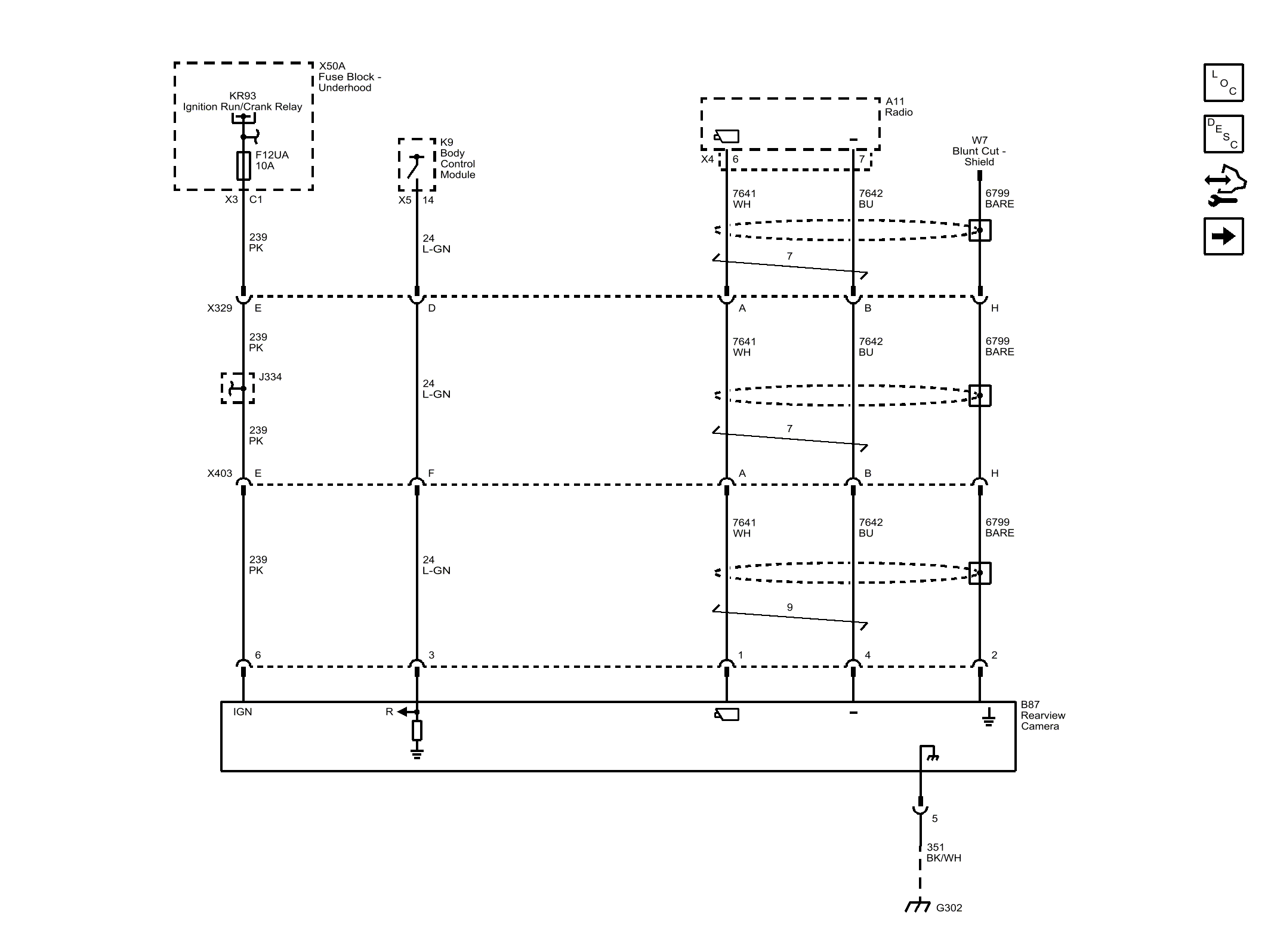

Fig 1: Rear Vision Camera (UVC with UI8)
GM3994628Courtesy of GENERAL MOTORS COMPANY
