Rear Vision Camera (UVC Without UI8)(Object Detection System And Pedestrian Protection System)

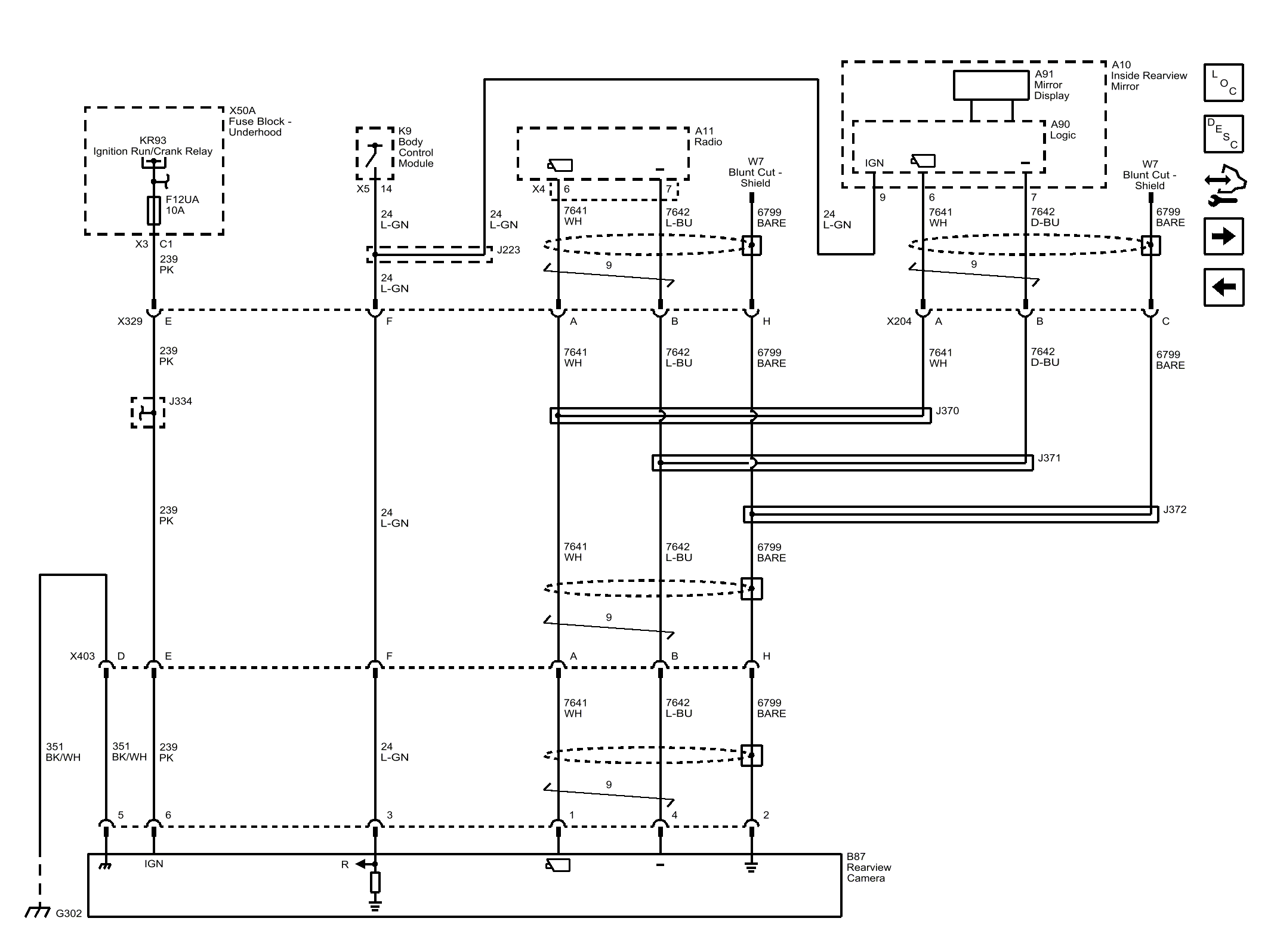

Fig 1: Rear Vision Camera (UVC without UI8)
GM3994631Courtesy of GENERAL MOTORS COMPANY
