Powertrain Expansion Bus (LGH)

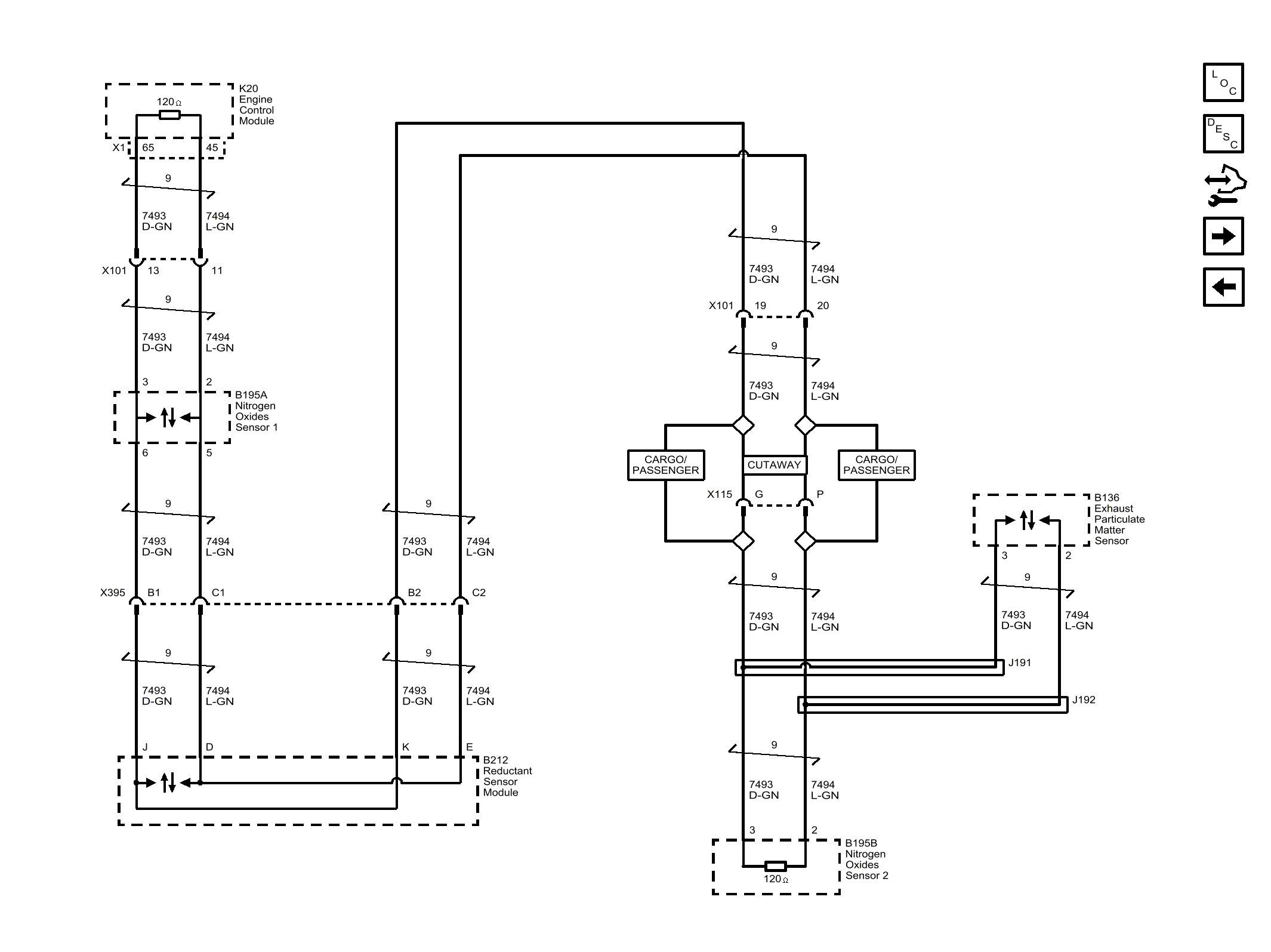

Fig 1: Powertrain Expansion Bus (LGH)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
