Digital Radio Receiver Replacement

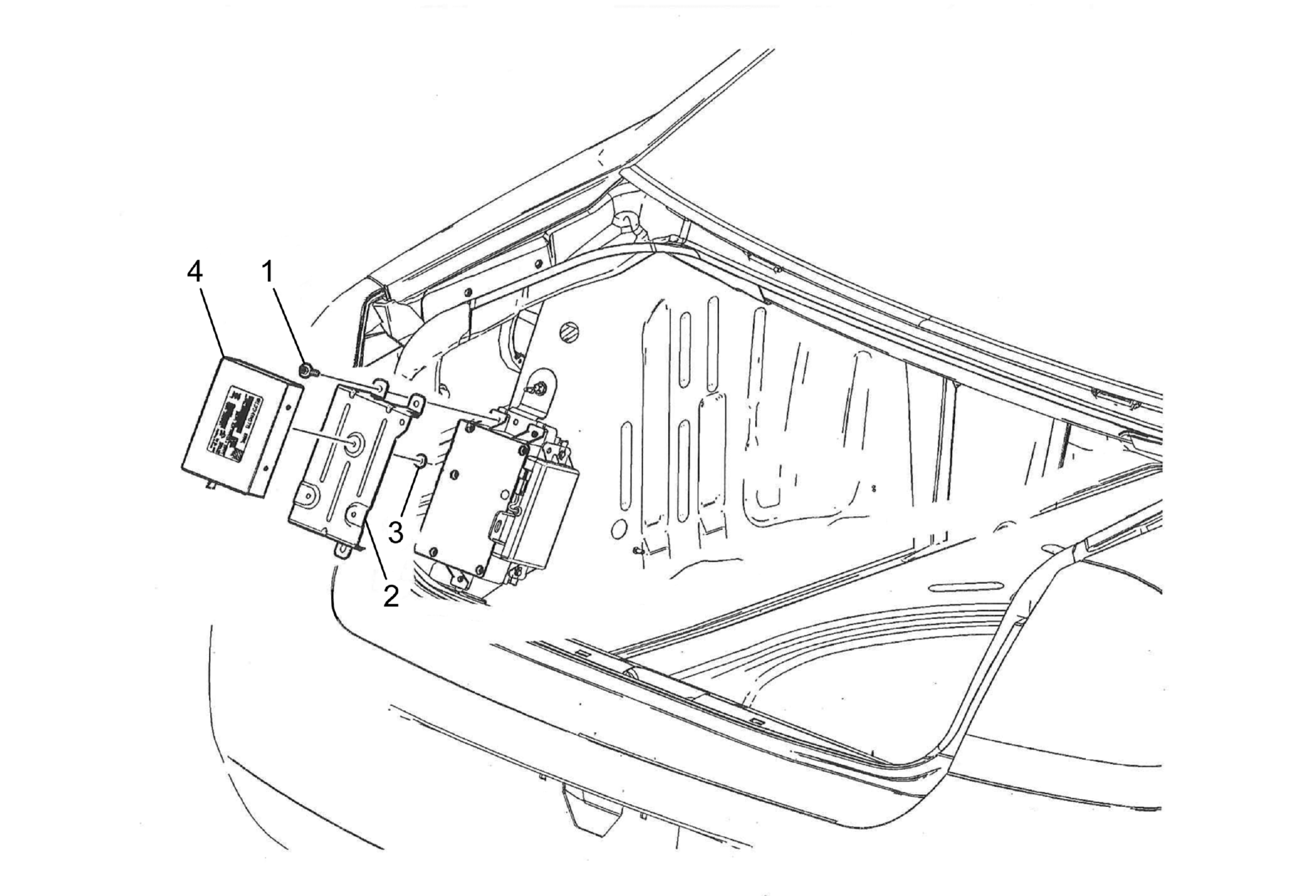

Fig 1: Digital Radio Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right rear compartment trim. Refer to Rear Compartment Side Trim Replacement - Right Side .
1	Digital Radio Receiver Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Digital Radio Receiver Bracket
3	Digital Radio Receiver Nut (Qty: 3)
4	Digital Radio Receiver Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set up, if required.
