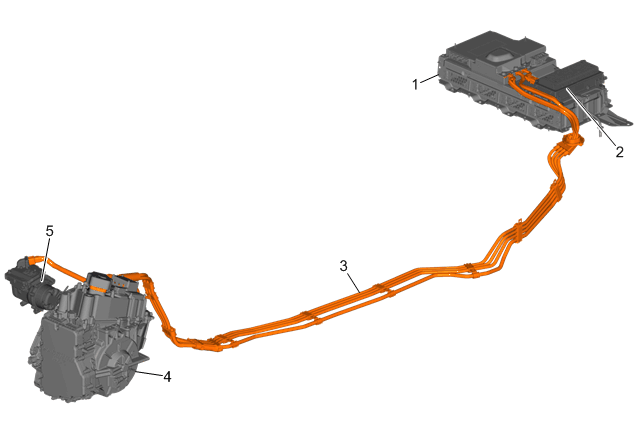

Hybrid Controls Electronic Component Views
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
High Voltage Battery Assembly |
| 2 |
14V Power Module |
| 3 |
300-Volt Battery Positive and Negative Cable |
| 4 |
5ET50 Transmission and T6 Power Inverter Module |
| 5 |
G1 A/C Compressor |
