Body Control System Wiring Schematics
›
Power, Ground and Data Communication References
Power, Ground and Data Communication References

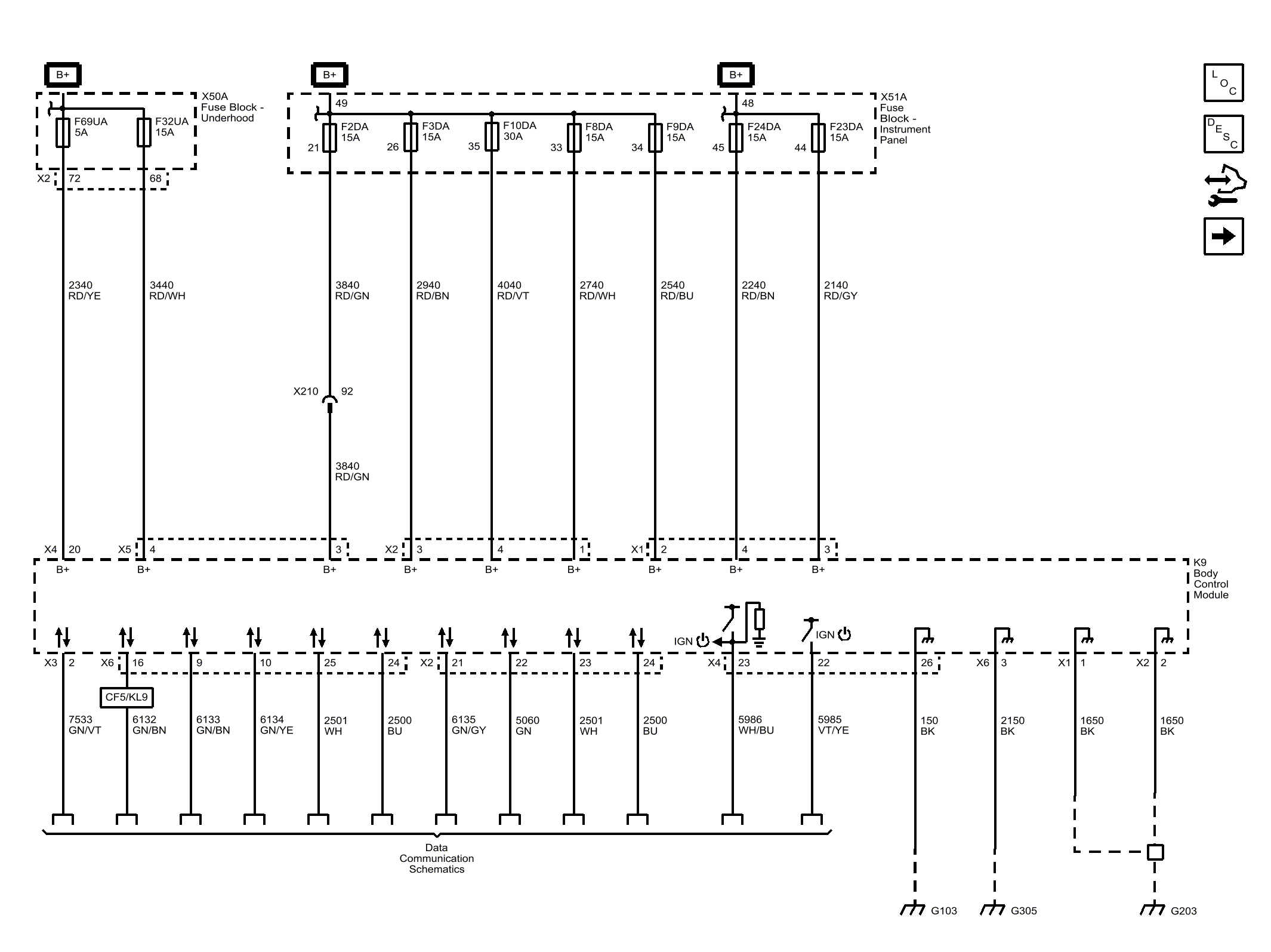

Fig 1: Power, Ground and Data Communication References
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
