Cruise Control Switch Replacement

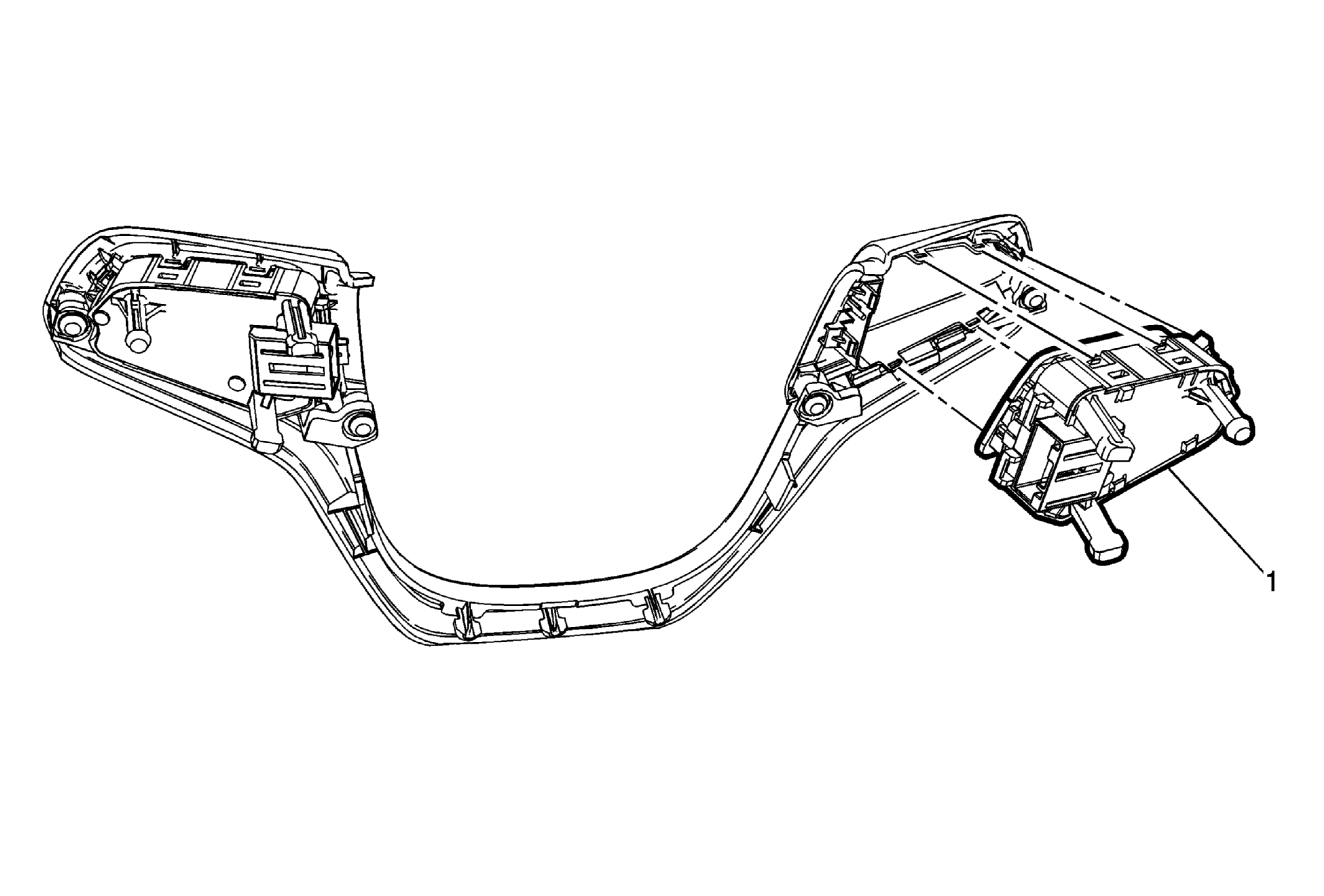

Fig 1: Cruise Control Switch
GM3287232Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Steering Wheel Spoke Lower Cover Replacement
1 Cruise Control Switch
Procedure
Release the retaining tabs and remove the cruise control switch from the steering wheel spoke cover.
