Blower Motor Control Module Replacement

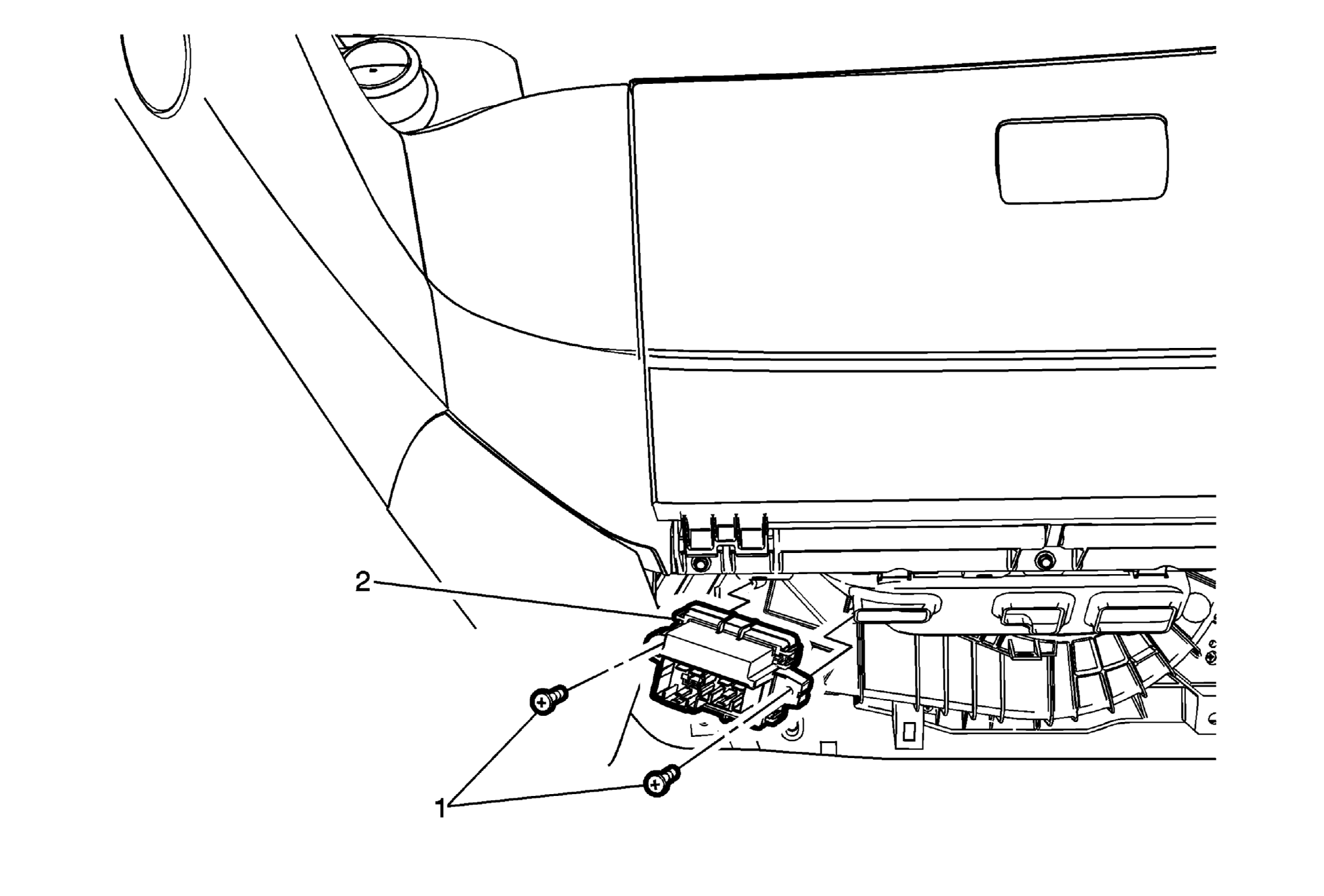

Fig 1: Blower Motor Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the right side instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Right Side .
1	Blower Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Blower Control Module Procedure  Disconnect the blower control module electrical connector.
