Power, Ground, Serial Data, Alarm, Rear Sensors and Controls

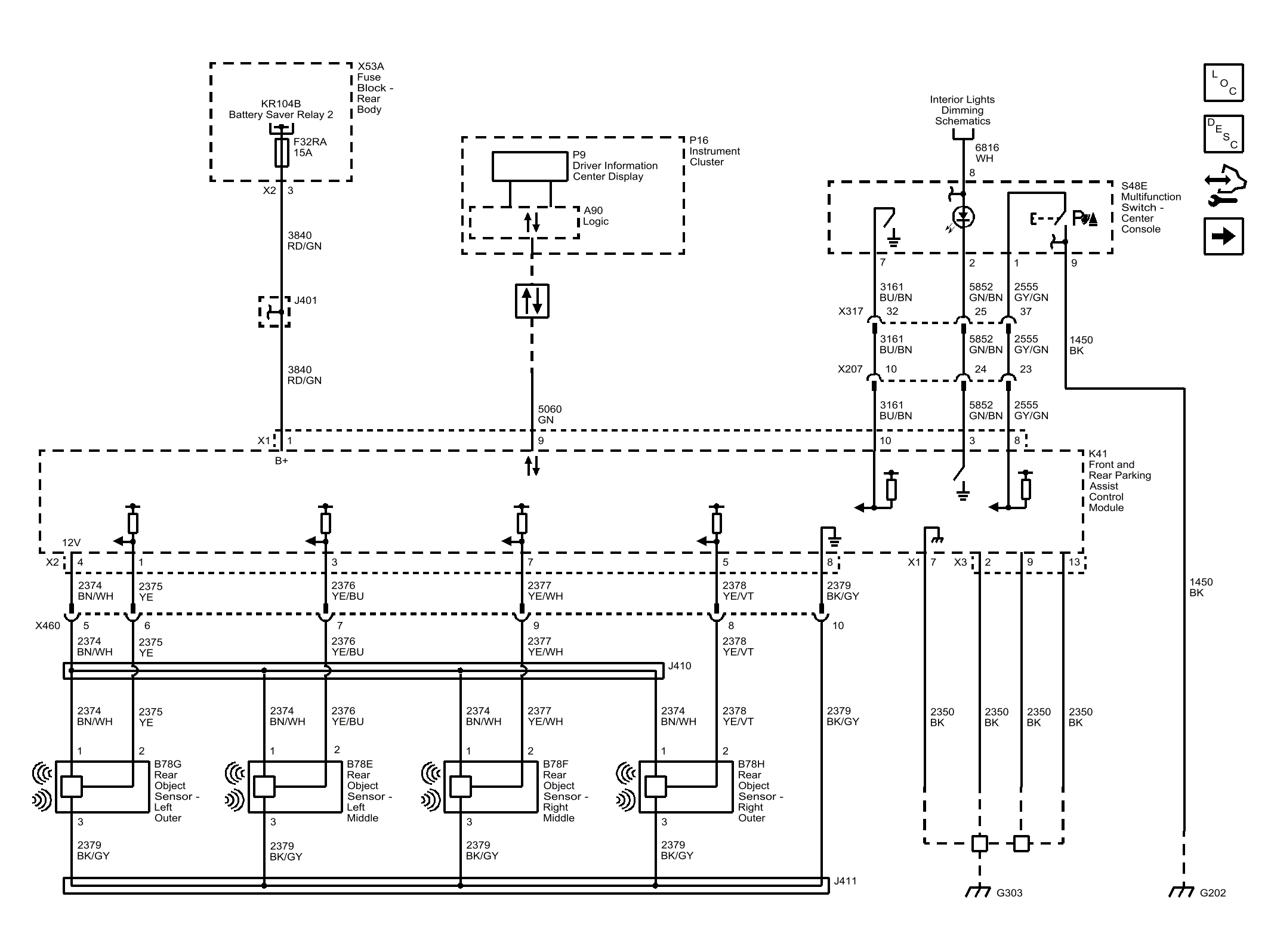

Fig 1: Power, Ground, Serial Data, Alarm, Rear Sensors and Controls
GM4236620Courtesy of GENERAL MOTORS COMPANY
