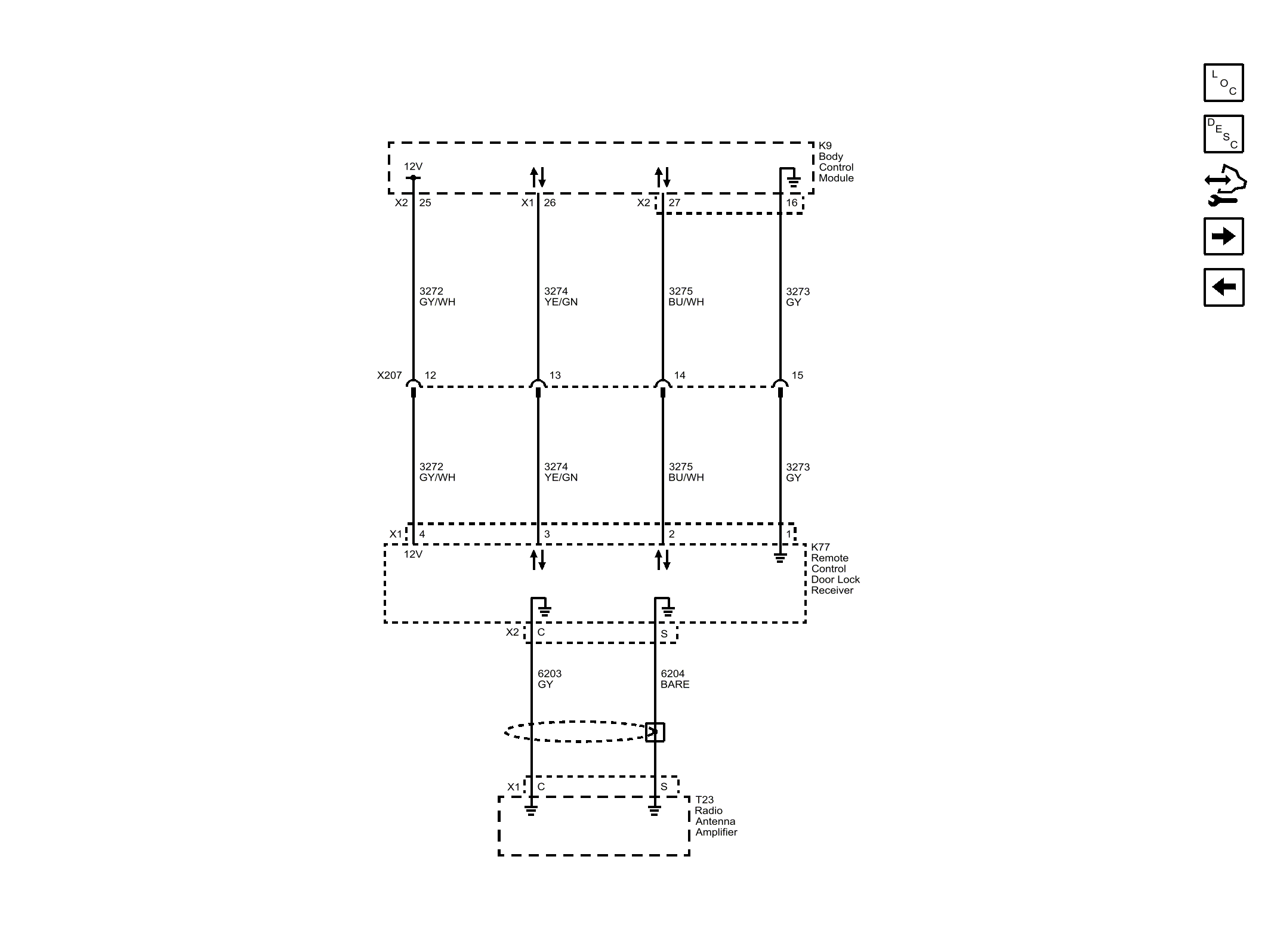

Home › Chevrolet › 2016 › SS Automatic Trans › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry
