Rear Side Door Window Regulator Motor Replacement

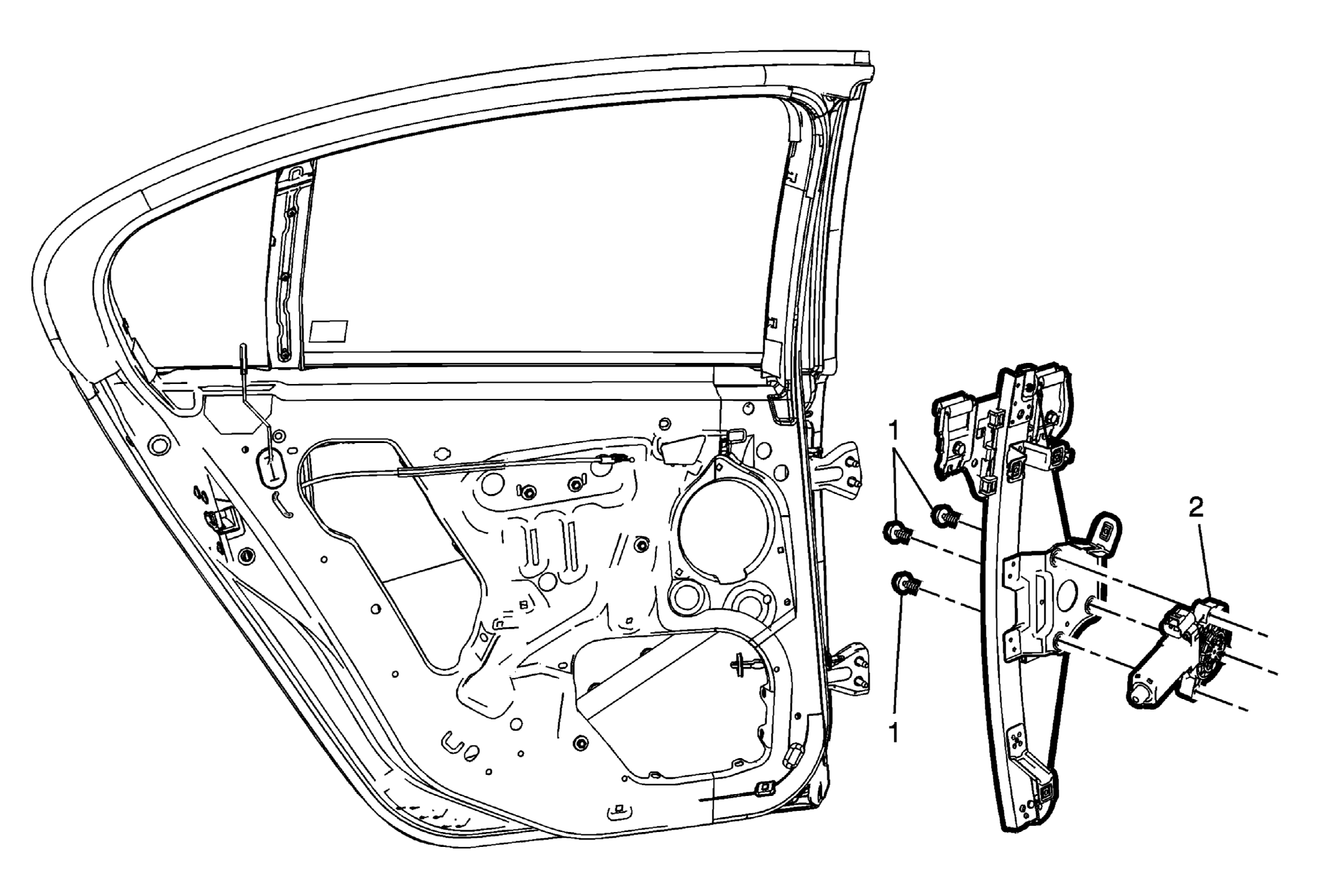

Fig 1: Rear Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement .
1	Rear Side Door Window Regulator Motor Bolt (Qty: 3). CAUTION: Refer to Fastener Caution . Procedure Remove the rear side door water deflector. Remove the rear side door window from the guide. Do Not remove the window from the vehicle, raise the window to the full up position, tape in place. Disconnect the electrical connector from the window regulator motor. Tighten 11 N.m (97 lb in)
2	Rear Side Door Window Regulator Motor NOTE: Inspect the door window for proper operation before installing the door trim.

Callout

Component Name

WARNING:

Preliminary Procedure Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement .

Rear Side Door Window Regulator Motor Bolt (Qty: 3).

CAUTION:

Procedure

Remove the rear side door water deflector.
Remove the rear side door window from the guide. Do Not remove the window from the vehicle, raise the window to the full up position, tape in place.
Disconnect the electrical connector from the window regulator motor.

Tighten
11 N.m (97 lb in)

Rear Side Door Window Regulator Motor

NOTE:

Inspect the door window for proper operation before installing the door trim.
