Installation Procedure

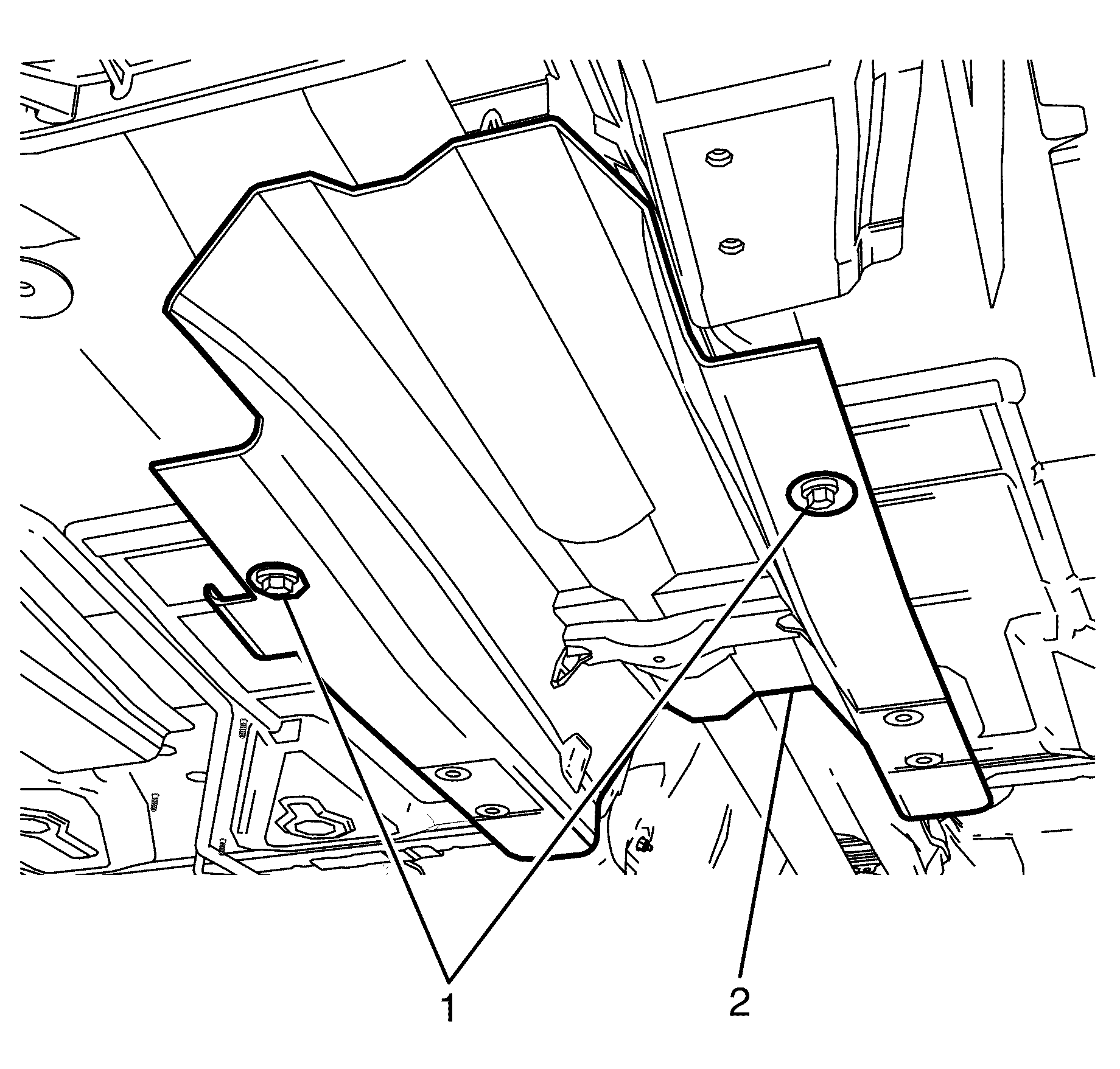

    Fig 1: Center Exhaust Heat Shield To Body Retaining Bolts
    GM1949683Courtesy of GENERAL MOTORS COMPANY
  1. Position the center exhaust heat shield (2) to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the center exhaust heat shield to body retaining bolts (1) and tighten to 4 N.m (35 lb in).
  3. Install the intermediate exhaust assembly. Refer to Exhaust Crossover Pipe Replacement .
  4. Lower the vehicle to the ground.
