Engine Exhaust Flow Control

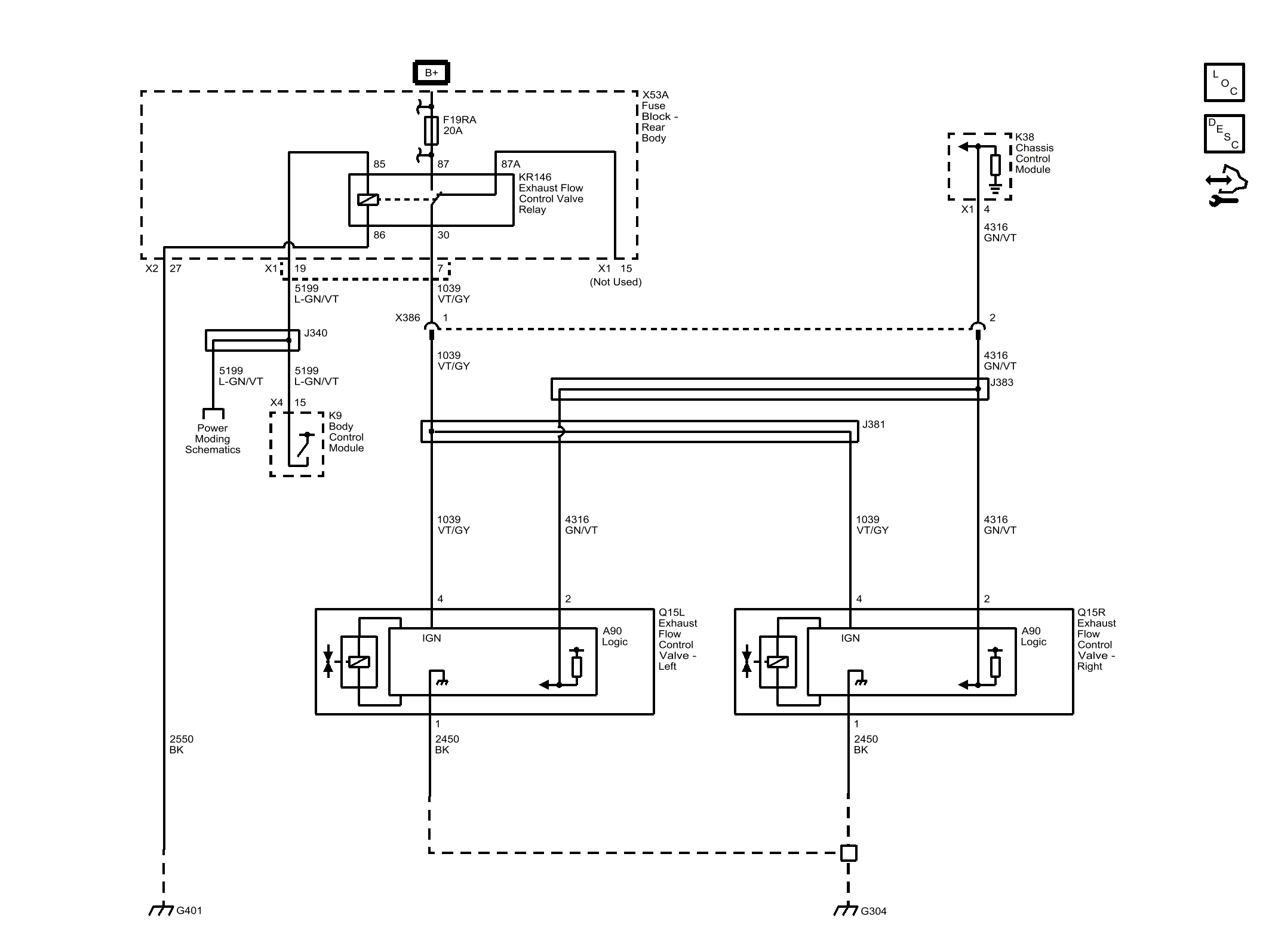

Fig 1: Engine Exhaust Flow Control
GM4257958Courtesy of GENERAL MOTORS COMPANY
