Front Side Door Window Control Switch Replacement (Drivers Side)

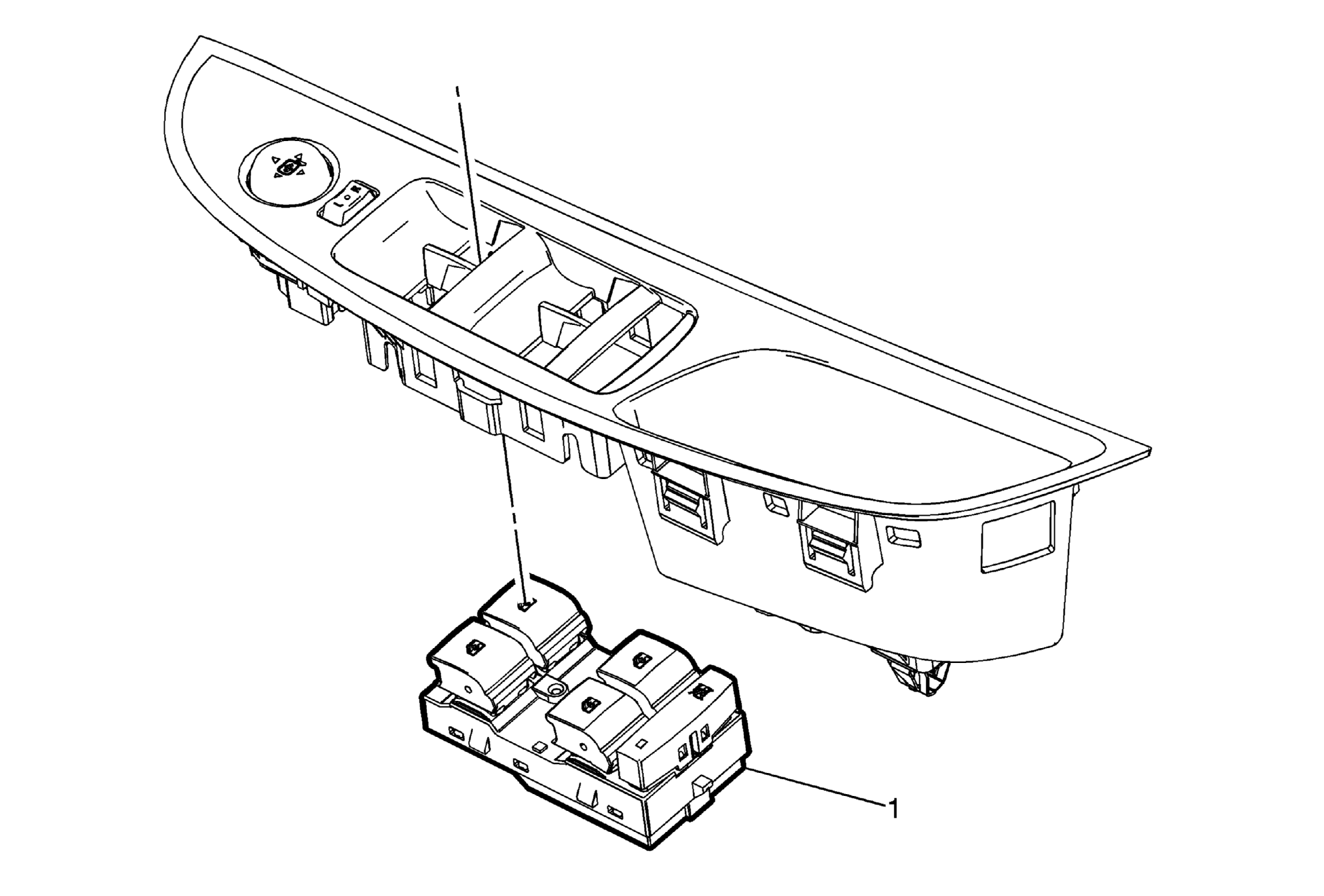

Fig 1: Front Side Door Window Control Switch (Drivers Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver side front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement - Driver Side .
1	Front Side Door Window Control Switch Assembly Procedure Release tabs on switch to remove from the front side door accessory switch mount plate. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the driver side front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement - Driver Side .

Front Side Door Window Control Switch Assembly

Procedure

Release tabs on switch to remove from the front side door accessory switch mount plate.
Refer to Control Module References for programming and set up procedures.
