Fan Blade Replacement

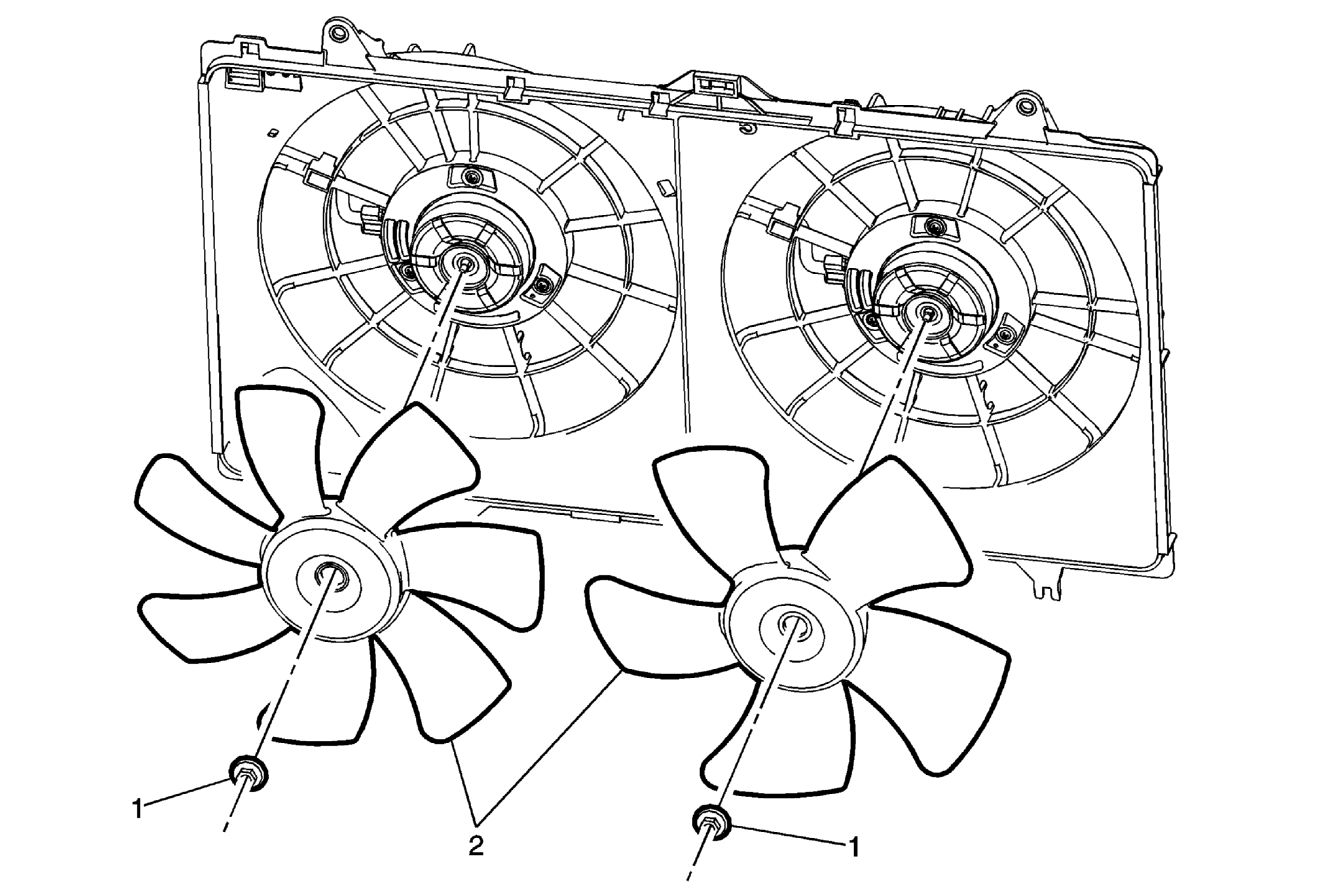

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement .
NOTE:
The left and right side engine coolant fans are different. Ensure you install the left or right side engine coolant fans on the proper side. |
|
| 1 | Fan Blade Nuts (Qty: 2) One Per Motor
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Fan Blade (Qty: 2) Procedure The fans blades are serviced separately. |
