Linear Interconnect Network (LIN) Bus 6 and 9

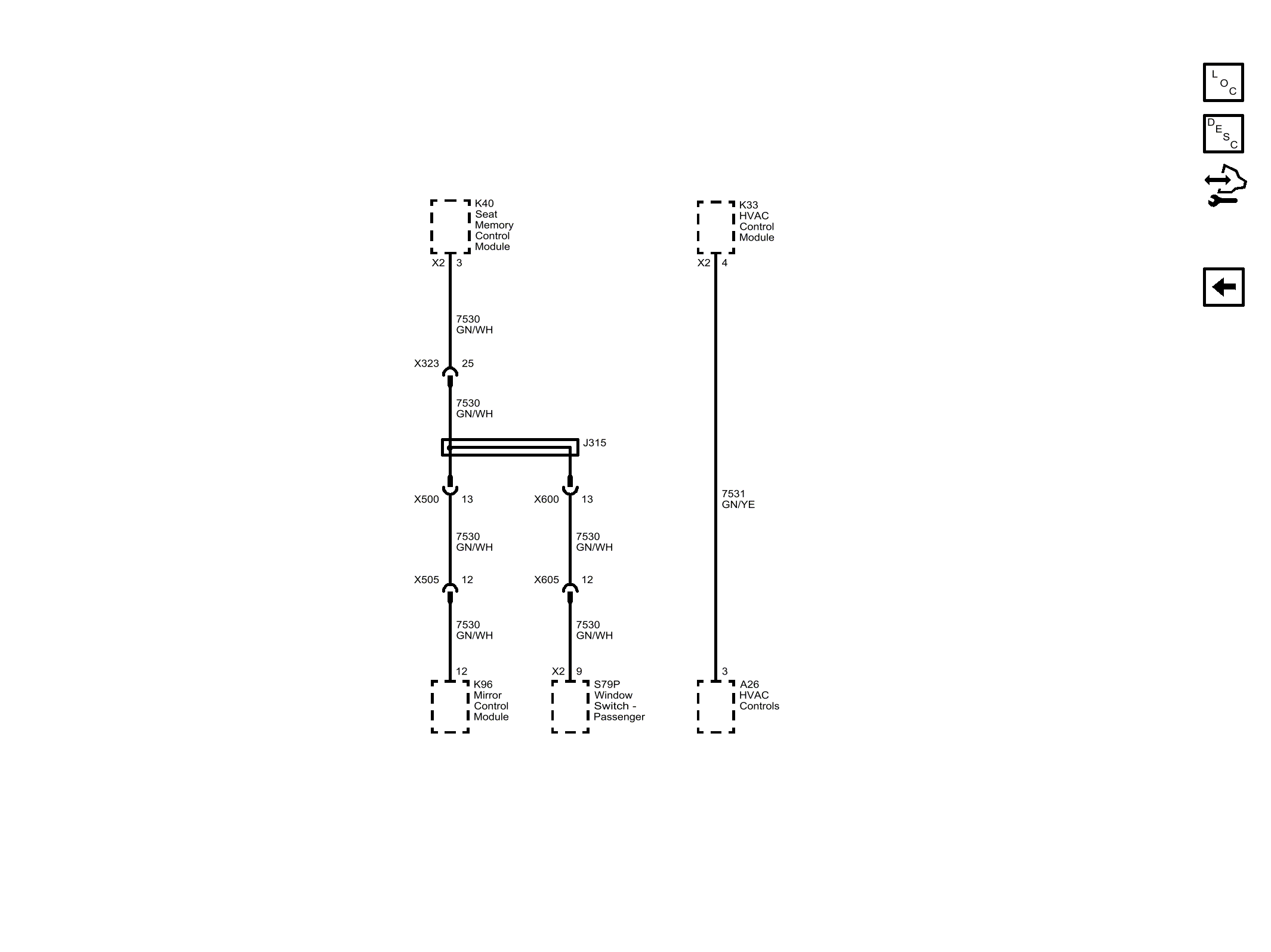

Fig 1: Linear Interconnect Network (LIN) Bus 6 and 9
GM4236555Courtesy of GENERAL MOTORS COMPANY
