Module Power, Ground, and Serial Data

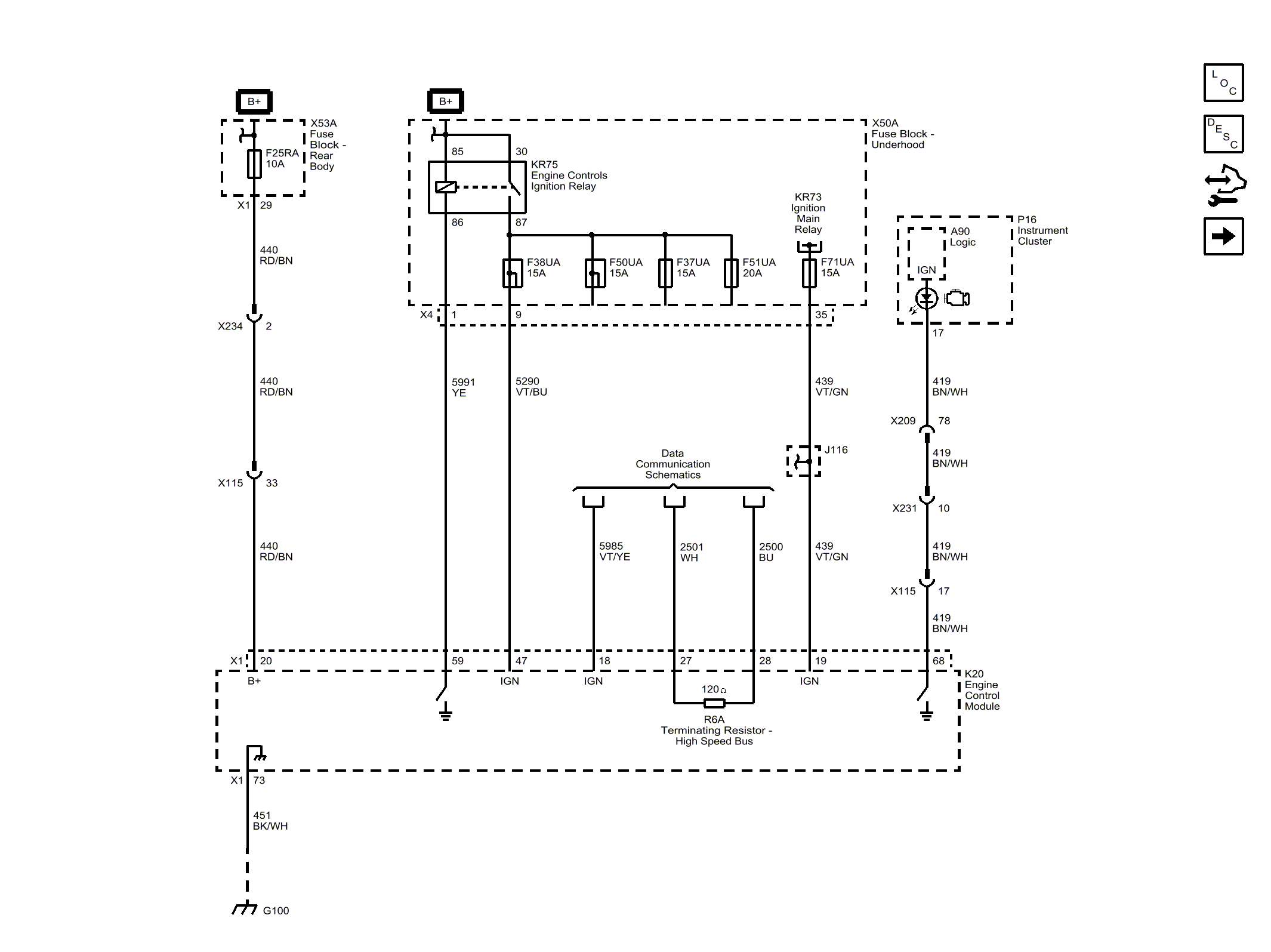

Fig 1: Module Power, Ground, and Serial Data
GM4236504Courtesy of GENERAL MOTORS COMPANY
