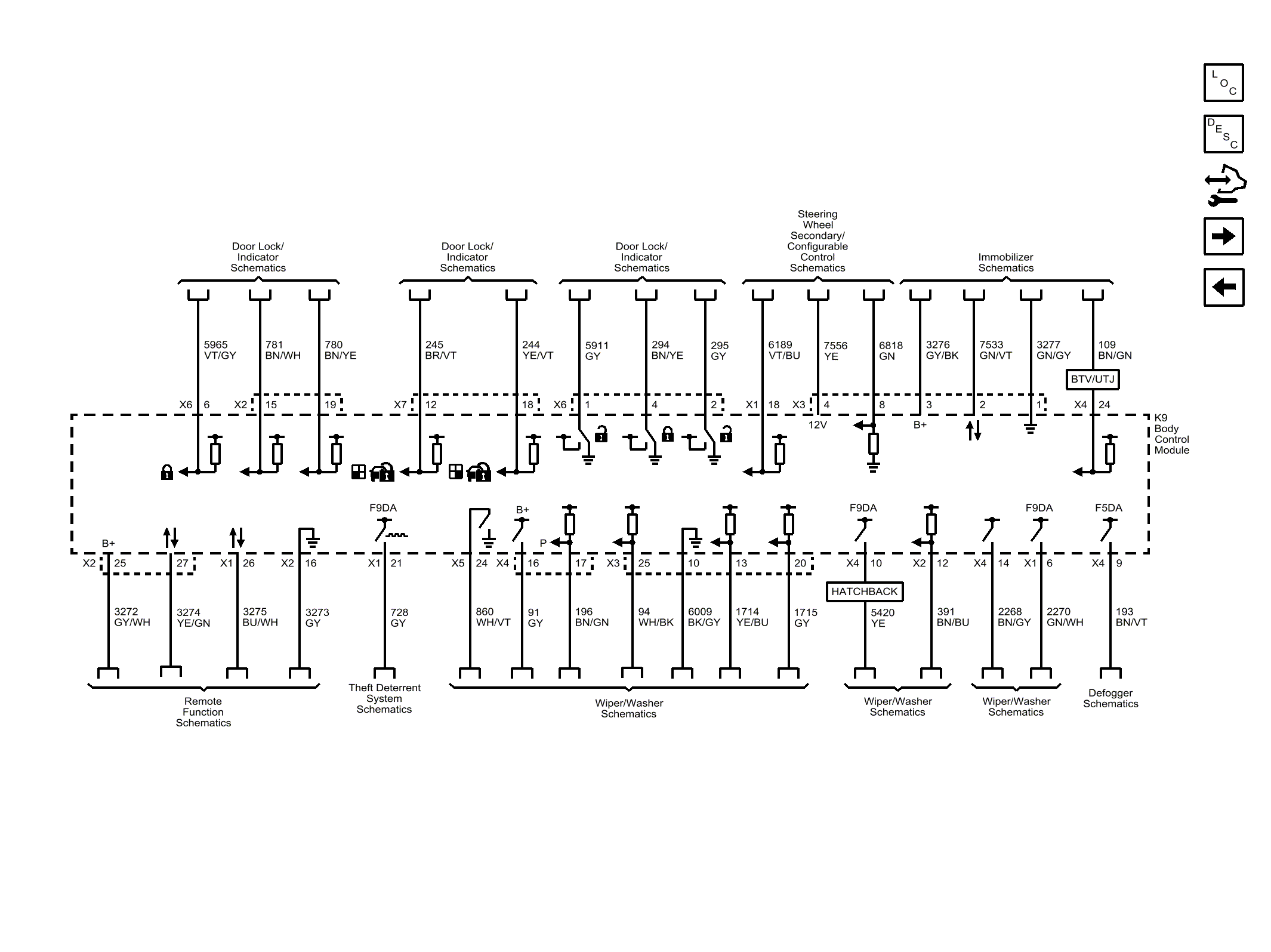

Home › Chevrolet › 2016 › Sonic RS, 4D Hatchback, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Body Control System Wiring Schematics › Subsystem References (4 of 5)
