Shift Lock

WARNING: This page is about a different variant/trim than selected.

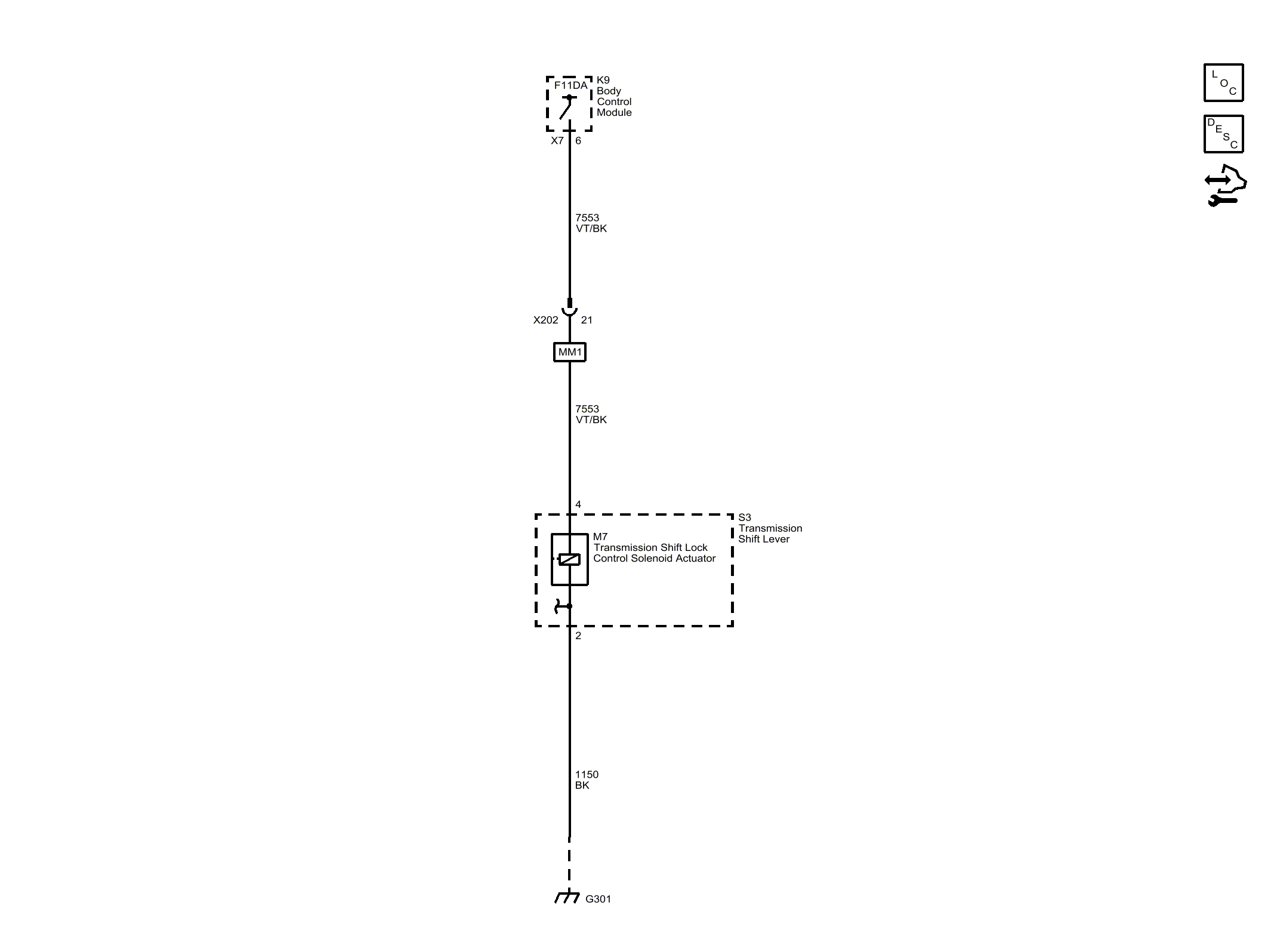

Fig 1: Shift Lock
GM3982535Courtesy of GENERAL MOTORS COMPANY
