Radio Front Speaker Replacement

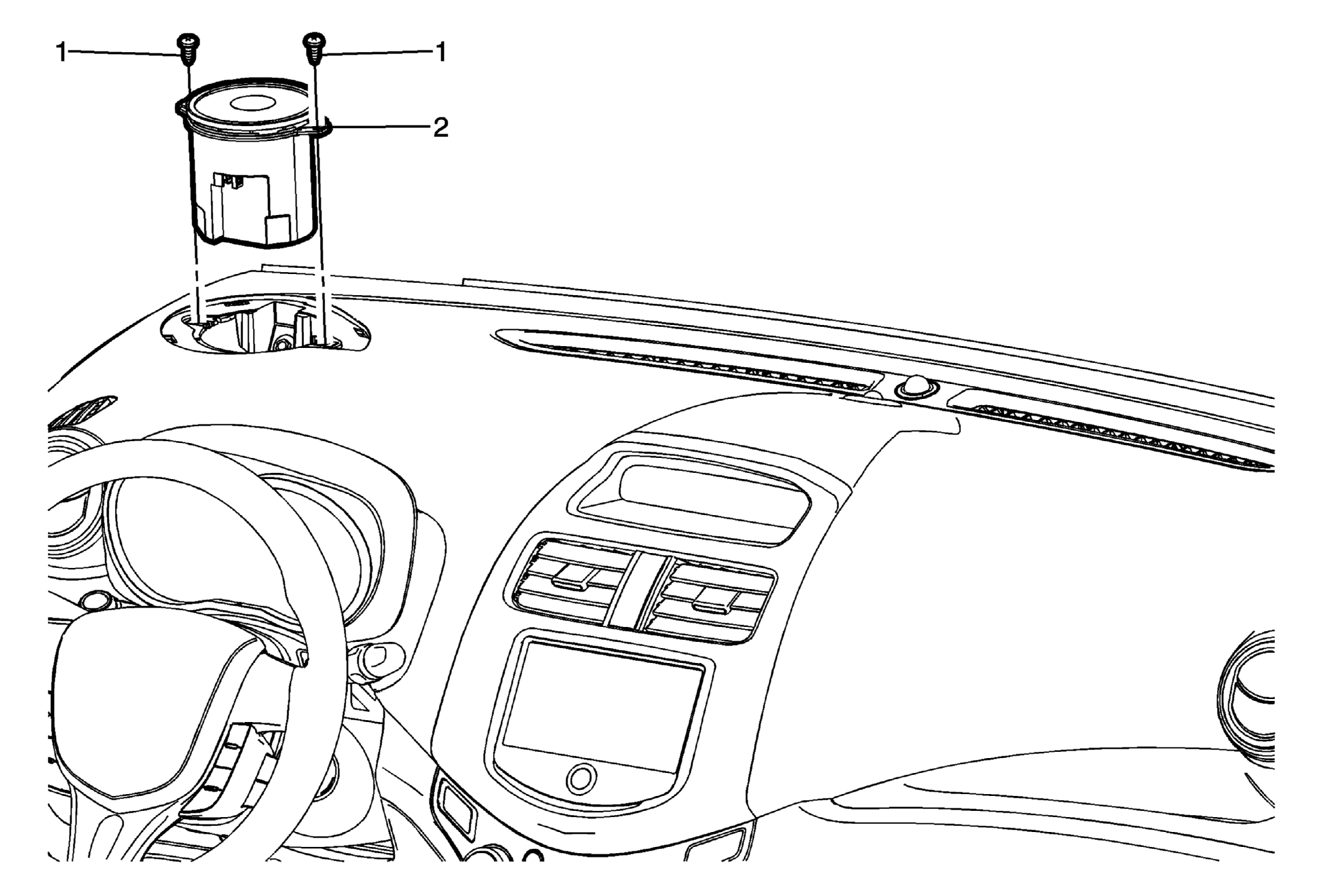

Fig 1: Radio Front Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel trim pad radio speaker opening cover. Refer to Instrument Panel Trim Pad Radio Speaker Opening Cover Replacement .
1	Radio Front Speaker Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Radio Front Speaker Procedure  Disconnect the electrical connector.
