Front Side Door Inside Handle Replacement

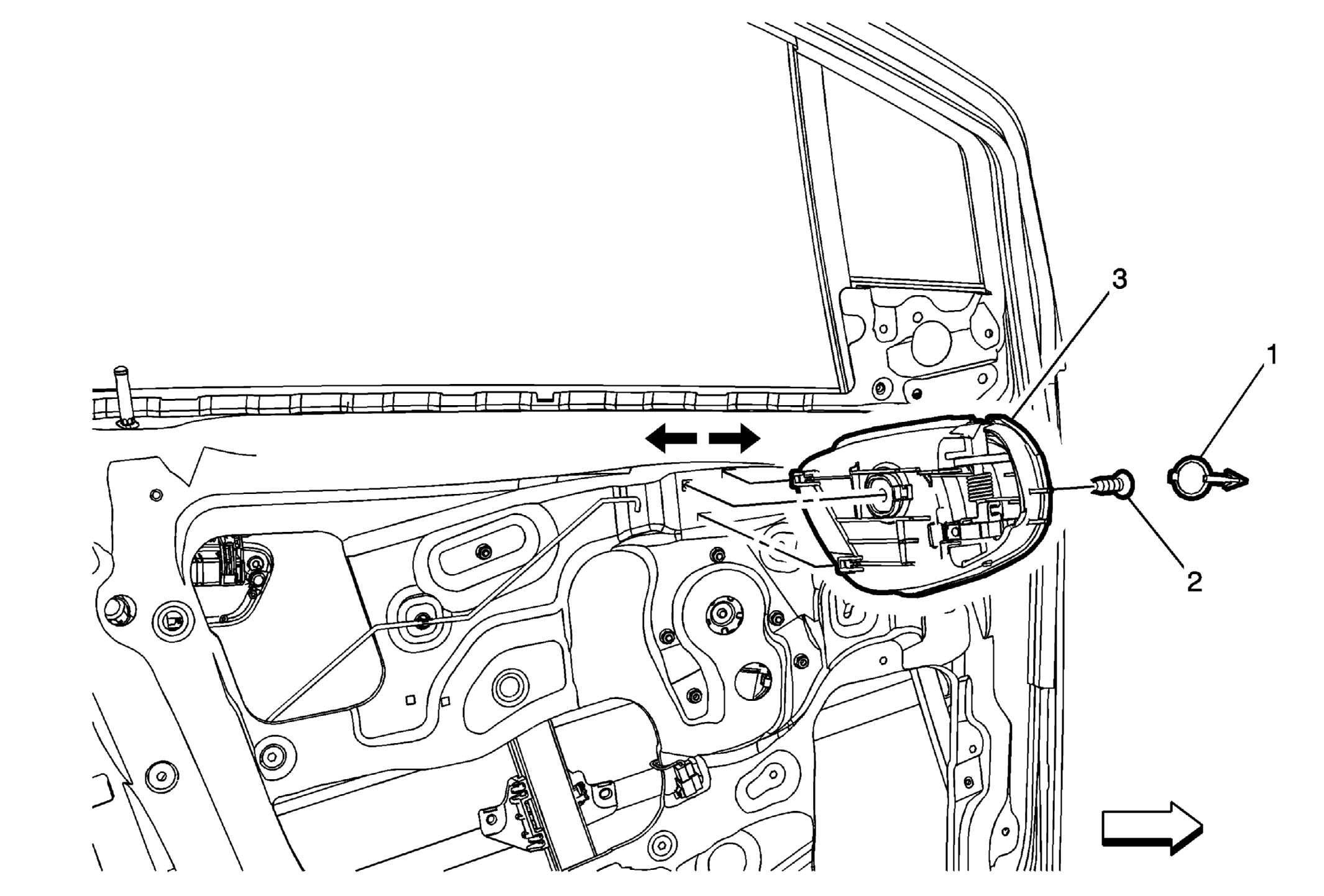

Fig 1: Front Side Door Inside Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement .
1	Front Side Door Inside Handle Cap
2	Front Side Door Inside Handle Screw CAUTION: Refer to Fastener Caution . Procedure Place the window in the full up position. Remove the water deflector. Release the front side door inside handle from the clip. Tighten 2 N.m (18 lb in)
3	Front Side Door Inside Handle Procedure Transfer components as necessary. NOTE: Inspect the door lock system for proper operation before installing the door trim.
