Removal Procedure

  1. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
  2. Remove the water deflector.
  3. Remove the front side door lock cylinder rod.

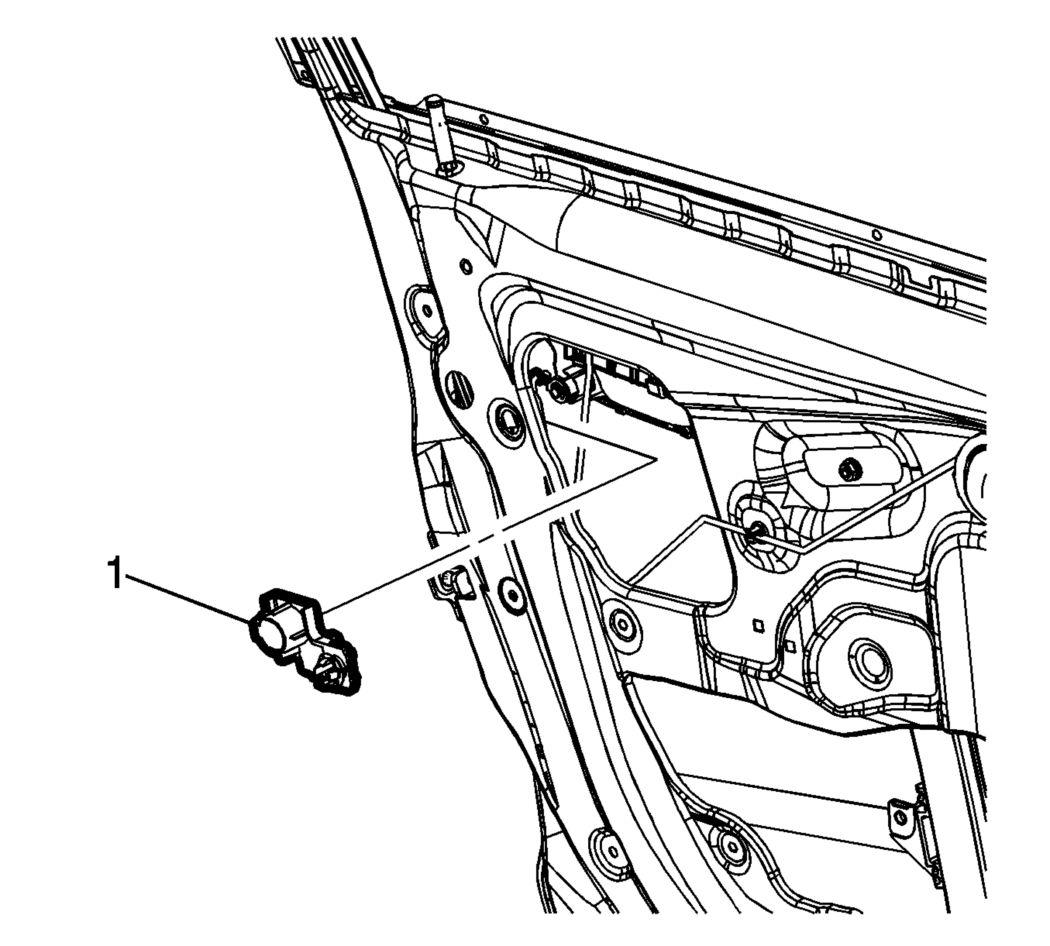

    4. Fig 1: Front Side Door Lock Rod Holder
    GM2309071Courtesy of GENERAL MOTORS COMPANY
  4. Remove the front side door lock rod holder (1).
    5. Fig 2: Front Side Door Lock Cylinder Bolt
    GM2309073Courtesy of GENERAL MOTORS COMPANY
  5. Remove the front side door lock cylinder bolt (2).

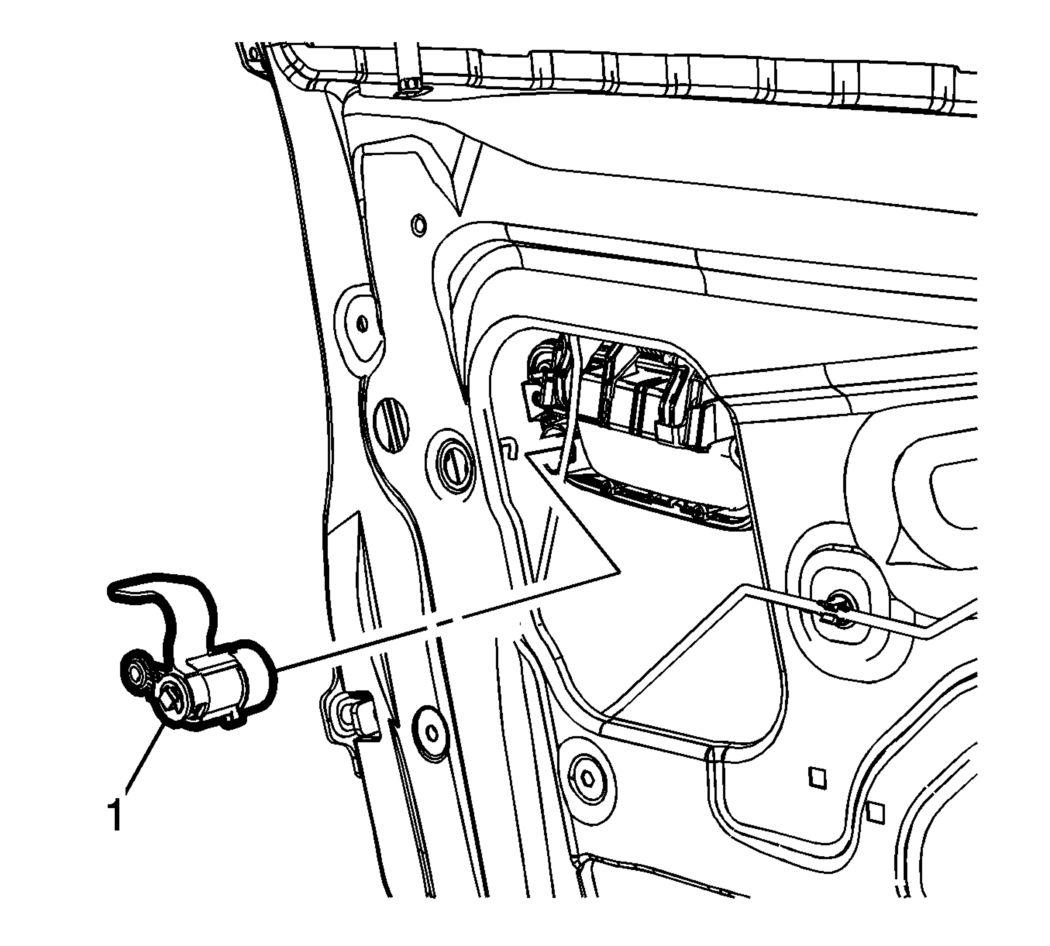

    6. Fig 3: Front Side Door Lock Cylinder
    GM2309074Courtesy of GENERAL MOTORS COMPANY
  6. Remove the front side door lock cylinder (3).
