Rear Side Door Lock Replacement

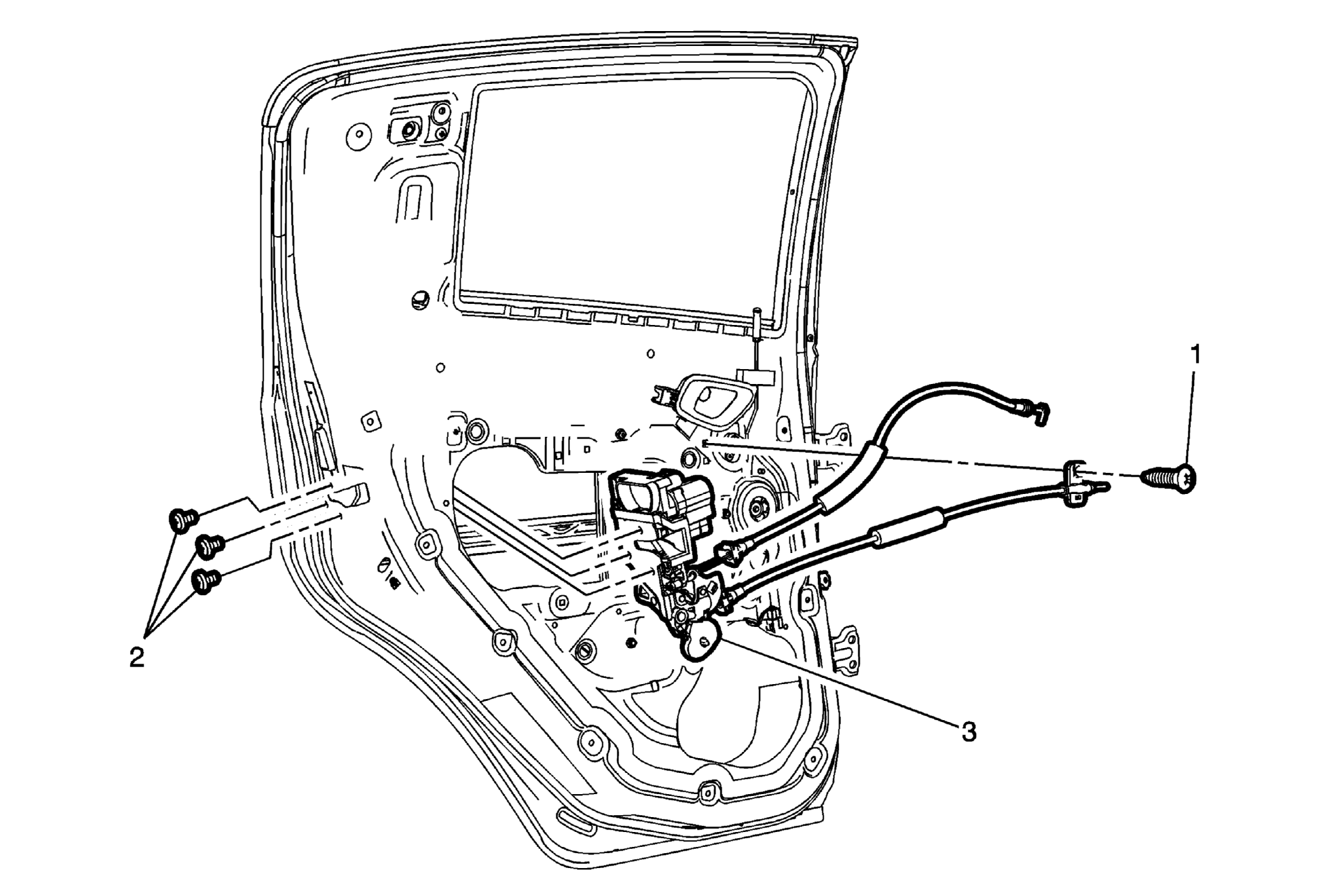

Fig 1: Rear Side Door Lock

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the rear side door water deflector. Disconnect the rear side door outside handle rod, inside handle rod and lock rod.
1	Rear Side Door Lock Cable Screw
2	Rear Side Door Lock Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
3	Rear Side Door Lock Assembly Disconnect the door lock electrical connector. Transfer components as necessary. NOTE: Inspect the door lock system for proper operation before installing the door trim.
