Theft Deterrent Module Replacement (With BTM)

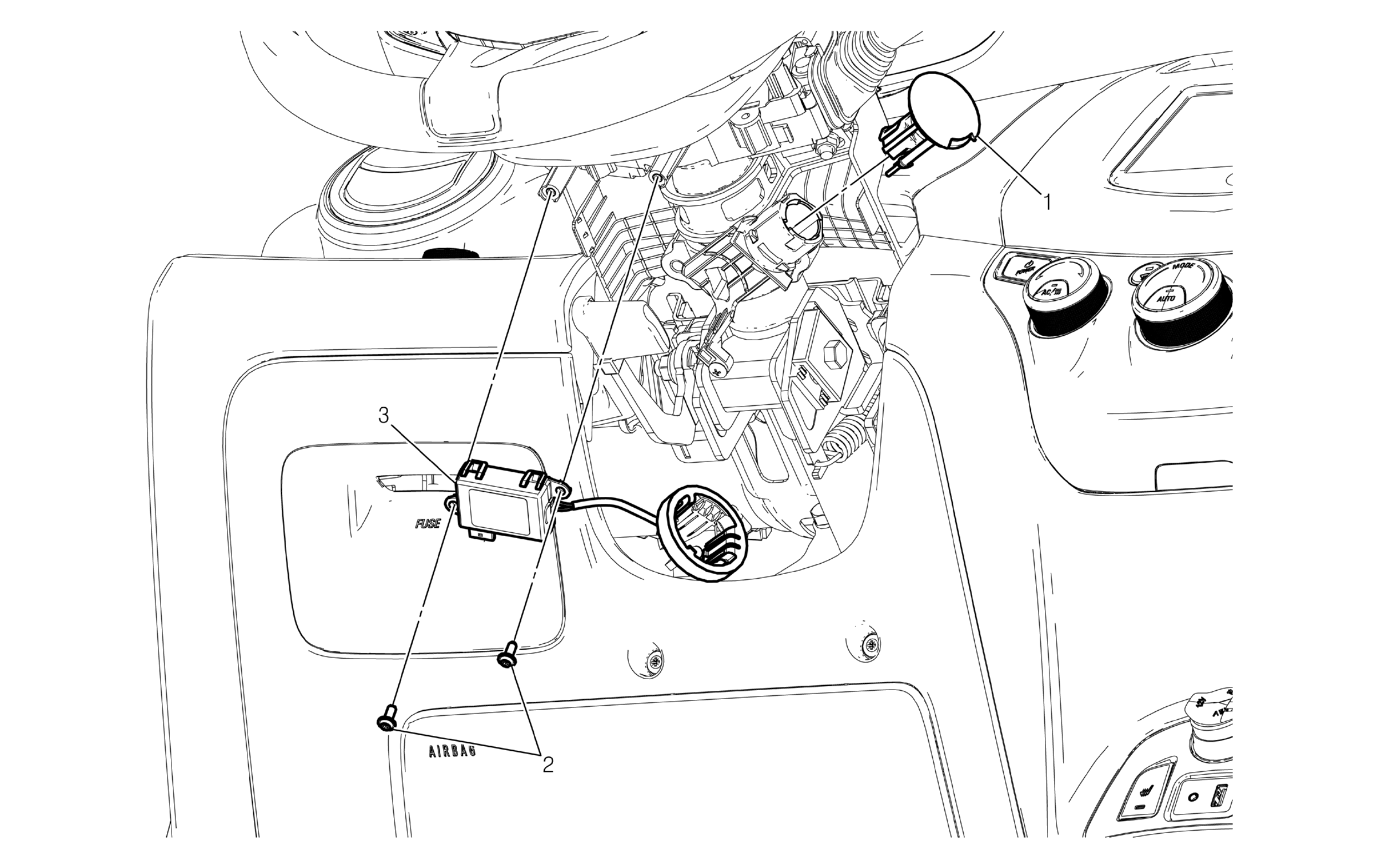

Fig 1: Theft Deterrent Module (With BTM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Battery Disconnect Warning . Preliminary Procedure Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement . Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Ignition Key Housing Cover Procedure Unclip the cover from ignition key housing.
2	Theft Deterrent Module Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
3	Theft Deterrent Module Procedure Disconnect the electrical connector. Carefully unclip the bracket from ignition key housing.
